Eclatés de véhicule - APRILIA SCARABEO 2T 50 Mot Minarelli 2000-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

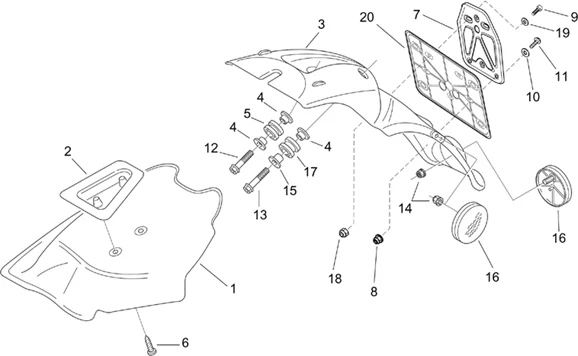

Chassis : 28.21 CARROSSERIE POSTERIEURE III - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/600/Scarabeo_50_2T_Mot_Minarelli_2000-2006_28.21.PNG)
1 |
AP8226282 - BAVETTE ANTI-ECLABOUSSURES Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8226283 - SUPP JUPE ANTI-ECLAB. Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8226612 - GARDE-BOUE ARRIERE GRIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
4 |
DOUILLE EN T (6.30X10X7.50) ORIGINE APRILIA COMMUN A LA GAMME -AP8121728 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
5 |
CAOUTCHOUC SILENBLOC ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8220150 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/8/0/8/img/58808.jpg)
7 |
SUPPORT PLAQUE IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME 50 CC APRILIA -AP8249558 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
8 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
9 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
10 |
RONDELLE PLATE (4X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150158 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
11 |
VIS BTR (4X10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152043 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
12 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152281 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
13 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152282 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
14 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
15 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
16 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8224164 Plus d'informationsQuantité requise : 3 |
||||||
|
17 |
AP8220369 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
19 |
RONDELLE PLATE (5,5X15X1,2) ORIGINE PIAGGIO COMMUN A LA GAMME Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
20 |
SUPPORT DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI ET MAXISCOOTER APRILIA -AP8149034- Plus d'informationsQuantité requise : 1 |
