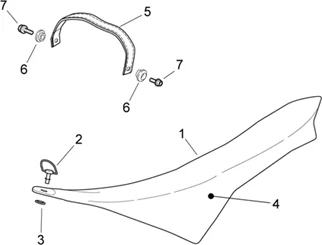

Chassis : 28.15 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/638/RXV_450_2006-2007_28.15.PNG)
1 |
851115 - SELLE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
851192 - SELLE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
851328 - SELLE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
853675 - SELLE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP9100365 - SGANCIO RAPIDO SELLA Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP9100087 - RONDELLA IN TEFLON Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP9100281 - RIVESTIMENTO SELLA Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
851373 - SECURING BELT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
851440 - COURROIE PASSAGER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
6 |
DOUILLE EN T (6.1X10X5.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121075 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279 Plus d'informationsQuantité requise : 2 |
