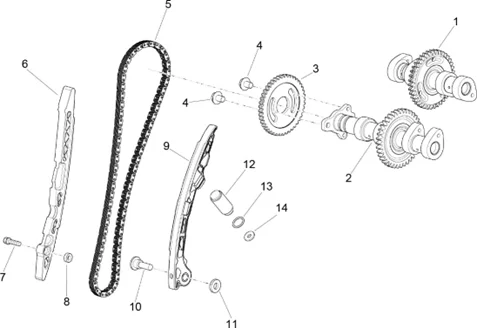

Moteur : 3140 DISTRIBUTION CYLINDRE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/563/RSV4_1000_RR_2015_3140.png)
3 |
COURONNE DE DISTRIBUTION (Z44) ORIGINE APRILIA 1000-1100 RSV4 2011> -857546- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/8/7/img/151087.jpg)
4 |
VIS BRIDE TH (8X10,3) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003151- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/6/0/img/42760.jpg)
5 |
CHAINE DE DISTRIBUTION (10,30X7,15) ORIGINE PIAGGIO APRILIA 1000 RSV-4 2011>, 1100 RSV-4 2019>, 1000 TUONO V4 2011>, 1100 TUONO V4 2015 -897444- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/9/5/img/108595.JPG)
6 |
GUIDE CHAINE DISTRIBUTION ORIGINE PIAGGIO RSV4, TUONO APRILIA 2015> -2A000559- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1A003110 - VIS SPECIALE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
857477 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
857094 - VIS SPECIALE M16X1 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
857096 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/2/img/69752.jpg)
13 |
JOINT TORIQUE (14.5X18X2) ORIGINE PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL -857176- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/5/7/9/img/62579.jpg)
14 |
RONDELLE TENDEUR CHAINE DE DISTRIBUTION (15X6X2) ORIGINE PIAGGIO APRILIA 1000 RSV, TUONO -B045476- Plus d'informationsQuantité requise : 1 |
