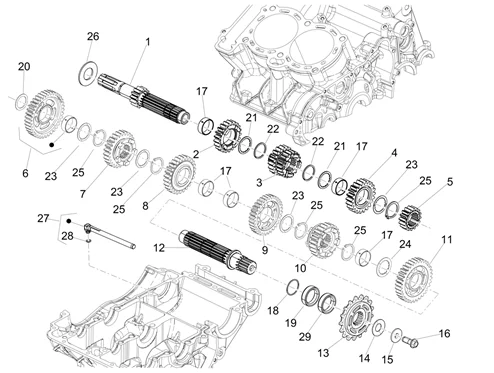

Moteur : 03.18 BOÎTE DE VITESSES - ENGRENAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/961/RS_660_4T_8V_E5_ABS_2020_(EMEA)_03.18.png)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
|
||||||
|
4 |
|
||||||
|
5 |
|
||||||
|
6 |
|
||||||
|
7 |
|
||||||
|
8 |
|
||||||
|
9 |
|
||||||
|
10 |
1A018086 MODELLO ZANG Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
1A018085 2ND SPEED GEAR Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/9/0/img/171590.jpg)
13 |
PIGNON 17 DENTS ORIGINE APRILIA 660 RS, TUONO FACTORY 2020> -2B006795 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
2B002193 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
2B002191 - DOUILLE EN "T" Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/0/4/5/img/62045.jpg)
16 |
VIS BRIDE TH (10X25) ORIGINE PIAGGIO COMMUN A LA GAMME -B043047 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/8/img/69598.jpg)
17 |
BAGUE MOBILE BOITE DE VITESSE ORIGINE APRILIA-MOTO GUZZI COMMUN A LA GAMME -849308 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/3/1/2/img/41312.jpg)
18 |
JOINT TORIQUE SORTIE DE BOITE ORIGINE APRILIA CAPONORD, DORSODURO, SHIVER, 660 RS -871901 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
974558 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
|
||||||
|
21 |
849424 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/7/2/img/39072.JPG)
22 |
ANNEAU ELASTIQUE DE BOITE VITESSE (27X1.5) ORIGINE APRILIA COMMUN A LA GAMME -849426 Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
849310 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
24 |
849309 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/6/8/img/39068.jpg)
25 |
ANNEAU ELASTIQUE DE BOITE VITESSE (27.5X2) ORIGINE APRILIA COMMUN A LA GAMME -849311 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/3/1/2/img/43312.jpg)
26 |
RONDELLE EMBRAYAGE ORIGINE APRILIA COMMUN A LA GAMME -974320 Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
28 |
JOINT TORIQUE BOITE DE VITESSE OU POMPE A EAU ORIGINE PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO TRIPORTEUR APE -224035 Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
2B006792 SPROCKET SPACER Plus d'informationsQuantité requise : 1 |
