Eclatés de véhicule - APRILIA RS 250 1998-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

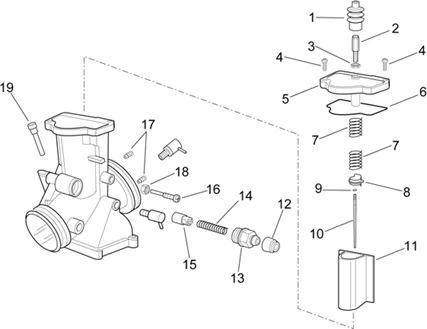

Moteur : 29.52 CARBURATEUR II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/556/RS_250_1998-2003_29.52.PNG)
1 |
AP8102423 - CAPUCHON CABLE GAZ Plus d'informationsQuantité requise : 2 |
||||||
|
2 |
AP8600138 - REGLAGE Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
AP8600139 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8600140 - RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
AP8600143 - POINTEAU Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8600144 - SOUPAPE Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
AP8600168 - CAPUCHON Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
AP8600167 - GUIDE RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
AP8600166 - RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
AP8600165 - OBTURATEUR STARTER Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
AP8600181 - VIS REGLAGE GAUCHE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP8600182 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP8600178 - FILTRE Plus d'informationsQuantité requise : 2 |
