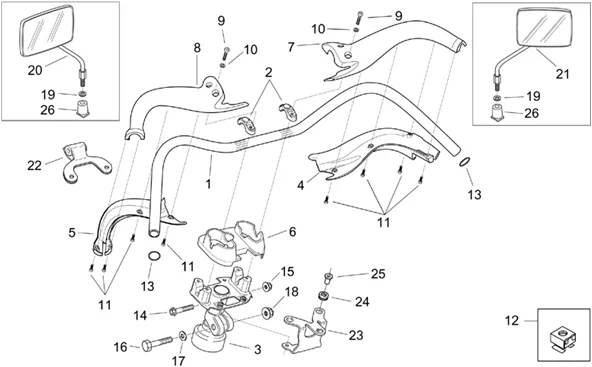

Eclatés de véhicule - APRILIA MOJITO 50 Mojito Custom 50 2T (eng.Aprilia) 99-04
Chassis : 28.15 GUIDON
28.15 GUIDON
![]() 1 |
GUIDON ORIGINE PIAGGIO APRILIA 50-125 MOJITO 1999>2010 -AP8218490- Plus d'informationsQuantité requise : 1 |
||||||
![]() 2 |
AP8218489 - CAVALIER SUP. Plus d'informationsQuantité requise : 2 |
||||||
![]() 3 |
AP8218491 - SUPPORT INF. Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
AP8118634 - RIVESTIMENTO MANUBRIO INF.DX Plus d'informationsQuantité requise : 1 |
||||||
![]() 4 |
AP8218484 - REV?T. GUIDON INF.D. Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
AP8118635 - RIVESTIMENTO MANUBRIO INF.SX Plus d'informationsQuantité requise : 1 |
||||||
![]() 5 |
AP8218485 - REV?T. GUIDON INF.G. Plus d'informationsQuantité requise : 1 |
||||||
![]() 6 |
Revêt. guidon cent. |
||||||
![]() 6 |
AP8218486 - REV?T. GUIDON CENT. Plus d'informationsQuantité requise : 1 |
||||||
![]() 7 |
Revêt. guidon sup.d. |
||||||
![]() 7 |
AP8202267 - KIT REVETEMENT GUIDON Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
AP8202267 - KIT REVETEMENT GUIDON Plus d'informationsQuantité requise : 1 |
||||||
![]() 8 |
AP8249878 - REV?T. GUIDON SUP.G. Plus d'informationsQuantité requise : 1 |
||||||
![]() 9 |
AP8150286 - VIS Plus d'informationsQuantité requise : 4 |
||||||
![]() 10 |
DOUILLE EN T INTERIEUR 6 MM ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121811- Plus d'informationsQuantité requise : 4 |
||||||
![]() 11 |
VIS CRUCIFORME (2.9X12) TARAUD POUR PLASTIQUE INOX ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150421 Plus d'informationsQuantité requise : 8 |
||||||
![]() 11 |
VIS BTR (4X10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152043- Plus d'informationsQuantité requise : 8 |
||||||
![]() 12 |
ECROU EN CAGE M6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221213 Plus d'informationsQuantité requise : 2 |
||||||
![]() 13 |
AP8203976 - JOINT TORIQUE Plus d'informationsQuantité requise : 2 |
||||||
![]() 14 |
VIS BRIDE TH (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152290 Plus d'informationsQuantité requise : 1 |
||||||
![]() 15 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300- Plus d'informationsQuantité requise : 1 |
||||||
![]() 16 |
Vis |
||||||
![]() 17 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 1 |
||||||
![]() 18 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152301- Plus d'informationsQuantité requise : 1 |
||||||
![]() 19 |
RONDELLE PLATE (10,5X21X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150020 Plus d'informationsQuantité requise : 2 |
||||||
![]() 20 |
RETROVISEUR GAUCHE ORIGINE PIAGGIO APRILIA 50-125 MOJITO CUSTOM -AP8202170- Plus d'informationsQuantité requise : 1 |
||||||
![]() 21 |
RETROVISEUR DROIT ORIGINE PIAGGIO APRILIA 50-125 MOJITO CUSTOM -AP8202166- Plus d'informationsQuantité requise : 1 |
||||||
![]() 22 |
AP8146794 - STAFFA SUPPORTO FANALE Plus d'informationsQuantité requise : 1 |
||||||
![]() 22 |
BRIDE SUPPORT DE PHARE ORIGINE PIAGGIO 50-125 MOJITO -AP8234175- Plus d'informationsQuantité requise : 1 |
||||||
![]() 23 |
AP8234174 - BRIDE FIX. INSTR. Plus d'informationsQuantité requise : 1 |
||||||
![]() 24 |
AP8112599 - CAOUTCHOUC Plus d'informationsQuantité requise : 3 |
||||||
![]() 25 |
AP8121790 - "DOUILLE EN ""T""" Plus d'informationsQuantité requise : 3 |
||||||
![]() 26 |
CAOUTCHOUC DE RETROVISEUR ORIGINE APRILIA 50-125 MOJITO 1999>2010 -AP8144296 Plus d'informationsQuantité requise : 2 |
