Eclatés de véhicule - APRILIA ETV 1000 Capo Nord 2001-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

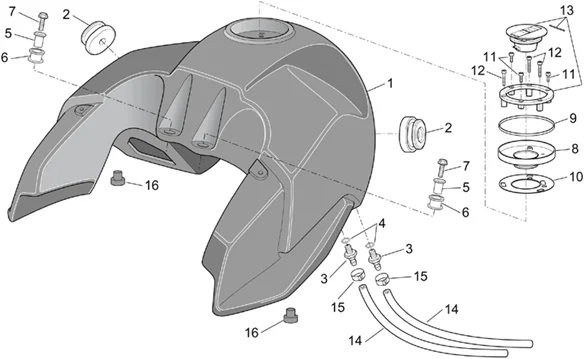

Chassis : 28.17 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/293/ETV_1000_Capo_Nord_2001-2003_28.17.PNG)
1 |
AP8139620 - RESERVOIR ESSENCE PEINT BLEU Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8168917 - SERBATOIO BENZINA V. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8168342 - RESERVOIR ESSENCE PEINT GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8168337 - RESERVOIR ESSENCE PEINT ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8168331 - RESERVOIR ESSENCE PEINT BLEU Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8168313 - RESERVOIR ESSENCE PEINT GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8168312 - RESERVOIR ESSENCE PEINT GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
AP8158037 - RESERVOIR ESSENCE PEINT GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8144350 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
3 |
INSERT RESERVOIR ESSENCE ORIGINE APRILIA /MOTO GUZZI COMMUN A LA GAMME -2B001203- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
4 |
JOINT TORIQUE DE CANALISATION ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -AP8120965- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
AP8121421 - "DOUILLE EN ""T""" Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
6 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LAGAMME -AP8144328- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
7 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152281- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/6/img/71186.jpg)
8 |
CUVE DE BOUCHON DE RESEVOIR ESSENCE ORIGINE PIAGGIO APRILIA 1000 RSV-2, FALCO, FUTURA, TUONO, CAPONORD, 250 RS, 650 PEGASO -AP8102535- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
9 |
JOINT DE BAGUE DE BOUCHON RESERVOIR ORIGINE PIAGGIO APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8144351 - JOINT RESERVOIR ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/1/img/71421.jpg)
10 |
JOINT DE CUVE INFERIEUR DE BOUCHON RESERVOIR ORIGINE PIAGGIO APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120894- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
AP8150454 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
VIS BTR (5X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150453- Plus d'informationsQuantité requise : 3 |
||||||
|
13 |
AP8104529 - BOUCHON RESERVOIR ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8104528 - BOUCHON RESERVOIR ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
896570 - TUYAU Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/4/5/img/55345.jpg)
15 |
COLLIER CLIC DURITE (8,5X5,5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8201225- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
16 |
BUTEE CAOUTCHOUC ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8144158- Plus d'informationsQuantité requise : 2 |
