Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

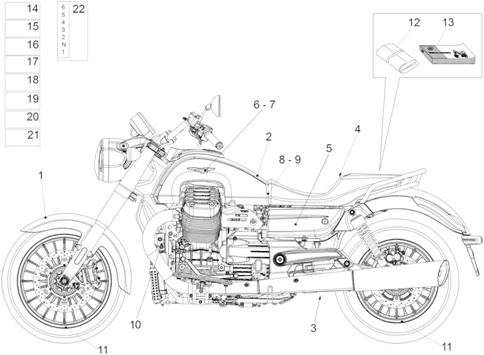

Carrosserie : 02.190 DECALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_02.190.PNG)
1 |
886141 - DECALCO OVALE MOTO GUZZI AQUILA NERA * Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU05944930 - DECALCO ENGINE START Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
895839 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
B063819 - DECALCO PRESSIONE PNEUMATICI * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/0/7/img/101207.jpg)
5 |
AUTOCOLLANT/STICKER/DECOR "CALIFORNIA" DE PLAQUE LATERALE GAUCHE OU DROIT ORIGINE PIAGGIO MOTO-GUZZI 1400 CALIFORNIA -B063950- Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
B063642 - LOGO SERBATOIO DX * Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
B063643 - LOGO SERBATOIO SX * Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
2B000031 - ADESIVO DI PROTEZIONE DX * Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
2B000032 - ADESIVO DI PROTEZIONE SX * Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU05944530 - DECALCO WARNING Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
887971 - DECALCO "MOTO GUZZI" CERCHI Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
2B000237 - TROUSSE A OUTILS Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
B063814 - (*)DECALCO EMIS INQUINANTI Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
B063813 - (*)DECALCO EMIS SONORE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
B063815 - (*)DECALCO SCHEMA FILTRO CARBONI Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
B045974 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP8257609 - DECALCO Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
AP8257794 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
GU32517710 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
B064117 - (*)DECALCO PRESSIONE PNEUMATICI USA * Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
AP8277381 - DECALCO MARCE GIAPPONE Plus d'informationsQuantité requise : 1 |
