Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1400 Custom ABS 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

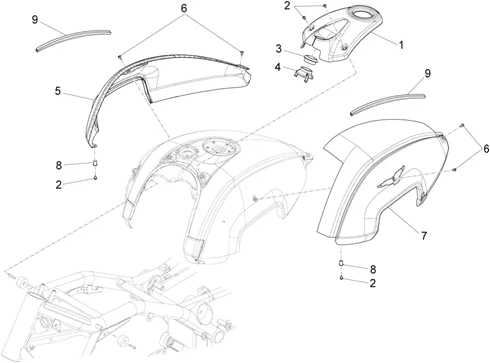

Carrosserie : 02.090 COUVRE-RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/470/California_1400_Custom_ABS_2012-2013_02.090.PNG)
1 |
B063478 - (*)PLANCETTA CHIAVE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU98370516 - VIS M5X16 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/1/img/71601.jpg)
3 |
AP8127461 - JOINT BLOC DEMARR. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/2/img/70882.jpg)
4 |
PROTECTION ANTENNE ANTIDEMARRAGE ORIGINE MOTO GUZZI 1400 AUDACE, CALIFORNIA -898136- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
B063181 - GUANCIA SERBATOIO DX GREZZO Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2B000161000YE5 - GUANCIA SERBATOIO DX GRIGO METALLO Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2B000161000XN2 - GUANCIA SERBATOIO DX NERO CUSTOM Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU98350210 - VIS TBEI M5X10 Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
2B000162000XN2 - GUANCIA SERBATOIO SX NERO CUSTOM Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
2B000162000YE5 - GUANCIA SERBATOIO SX GRIGIO METALLO Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
B063182 - GUANCIA SERBATOIO SX GREZZO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
8 |
ECROU (M5) AVEC INSERT CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME DERBI, APRILIA ET MOTO-GUZZI -AP8120531- Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU00823931055 - PROFILO GOMMA EPDM Plus d'informationsQuantité requise : 2 |
