Eclatés de véhicule - APRILIA ATLANTIC 125 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

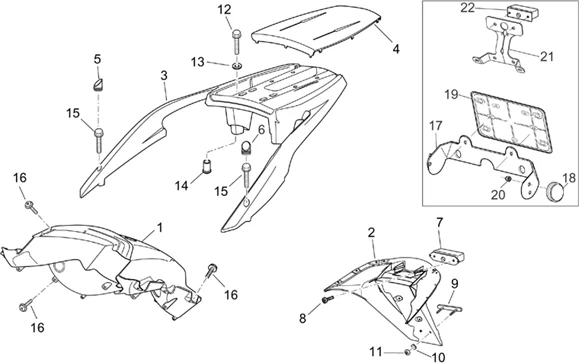

Chassis : 28.14 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/238/Atlantic_125_2003-2006_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/6/3/3/img/51633.jpg)
1 |
COFFRE ARRIERE ORIGINE PIAGGIO APRILIA 125-250 ATLANTIC 2003>2006 BRONZE -AP8158387- Plus d'informationsQuantité requise : 1 |
||||||
1 |
AP8179001 - COFANO POSTERIORE GRIGIO ASH Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/9/3/8/img/47938.jpg)
2 |
BAVETTE ARRIERE ORIGINE PIAGGIO APRILIA 125-250-300 ATLANTIC 2003>2012 -AP8126961- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8179722 - MANIGLIONE PASSEGGERO * Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8179002 - COPERCHIO PORTAP.V.GRIGIO ASH Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8178388 - COPERCHIO PORTAOG.V.AZZURRO C. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8178379 - COPERCHIO PORTAOG.V.GRIGIO M. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8168726 - COUV. PORTE-BAG., GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8168544 - COUV. PORTE-BAG., VERT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8168533 - COUV. PORTE-BAG., GRIS Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8168522 - COUV. PORTE-BAG., BLEU Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8158389 - COUV. PORTE-BAG., ROUGE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
AP8168046 - BOUCHON G Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8168047 - BOUCHON G Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/5/9/img/48059.jpg)
7 |
FEU DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO APRILIA 125-250-300 ATLANTIC 2012< -AP8127261- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
9 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO ET MAXISCOOTER APRILIA -AP8124718- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.JPG)
10 |
RONDELLE 4X16 ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -AP8150159- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
11 |
ECROU AUTOBLOQUANT/NYLSTOP (M4) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150204- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
12 |
VIS BRIDE TH (8X60) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152293- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
13 |
RONDELLE PLATE (8.5X24X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150018- Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
AP8121635 - DOUILLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
15 |
VIS BRIDE TH (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152283- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
16 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298- Plus d'informationsQuantité requise : 6 |
||||||
|
17 |
AP8258253 - AR.SUPPORT CATADIOPTRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
18 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8224164- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
19 |
SUPPORT DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI ET MAXISCOOTER APRILIA -AP8149034- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
20 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066- Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
AP8258253 - AR.SUPPORT CATADIOPTRE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
FEU DE PLAQUE IMMATRICULATION ORIGINE PIAGGIO APRILIA 125-250 RS, 1000 CAPONORD, 125-250-400-500 ATLANTIC/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8212702- Plus d'informationsQuantité requise : 1 |
