Eclatés de véhicule - MOTO GUZZI T3 850 1979-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

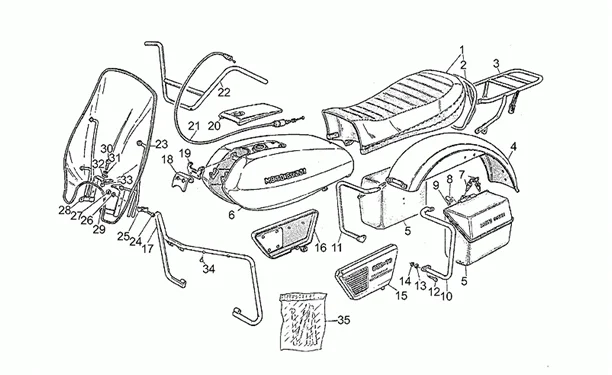

Chassis : 33.06 CARROS.850T3 CALIFORNIA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/460/850_T3_1979-1985_33.06.PNG)
10 |
GU18458850 - PARE-CHOCS AR G Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU98054425 - VIS M8X25 Plus d'informationsQuantité requise : 4 |
||||||
|
13 |
GU95021108 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
GU92602208 - ECROU M8X1,25 Plus d'informationsQuantité requise : 4 |
||||||
|
17 |
GU28450245 - PARE-CHOC Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
GU141012551 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU141022551 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GU95021108 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 4 |
||||||
|
27 |
GU92601208 - ECROU Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
31 |
RONDELLE PLATE (8.4X16X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150017- Plus d'informationsQuantité requise : 4 |
