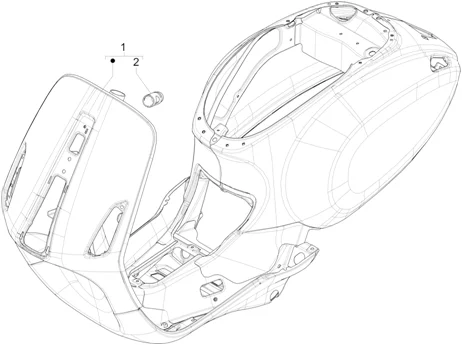

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/222/Vespa_Primavera_50_4T-4V_2013-2015_02.01.PNG)
1 |
FRAME "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2013>2017, SPRINT 2014>2016 BLUE MIDNIGHT 222/A -6735805000DE- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/2/8/8/img/91288.jpg)
1 |
FRAME "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA BLACK 98/A -6735805000XN2- More informationQuantity required : 1 |
||||||
|
1 |
6735805000R7 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
6735805000MD - COQUE More informationQuantity required : 1 |
||||||
|
1 |
6735805000M4 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
FRAME "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA WHITE 544 -6735806000BR- More informationQuantity required : 1 |
||||||
|
1 |
6735805000AZ - COQUE More informationQuantity required : 1 |
||||||
|
1 |
6735805 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
FRAME "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA WHITE 544 -6735806000BR- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
