Vehicle Exploded View - VESPA VESPA PRIMAVERA 125 E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

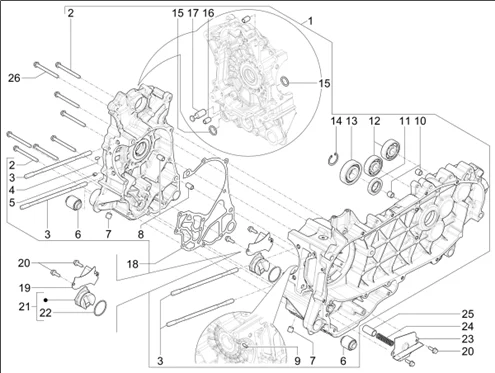

Moteur : 01.05 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1216/Vespa_Primavera_125_E5_2024_EMEA_01.05.png)
1 |
CM32570301 - CARTER COMPLET 1ERE CAT. More informationQuantity required : 1 |
|||||||||
|
1 |
CM32570302 - CARTER COMPLET 2EME CAT. More informationQuantity required : 1 |
|||||||||
|
1 |
CM34610202 - CARTER COMPLET 2E CAT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
2 |
B016425 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/4/img/127214.jpg)
3 |
1A001406 - GOUJON More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
4 |
484993 - PIVOT DE CENTR. More informationQuantity required : 1 |
|||||||||
|
5 |
B018059 - GICLEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/4/6/img/149146.jpg)
6 |
1A008919R - SILENBLOC More informationQuantity required : 2 |
|||||||||
|
7 |
B015230 - CHEVILLE A EXPANSION More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
8 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 2 |
|||||||||
|
9 |
880706 - GICLEUR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
10 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/0/3/img/139603.jpg)
11 |
1A005834 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
12 |
83026R - ROULEMENT 15X42X13 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/8/img/92848.jpg)
13 |
83027R - ROULEMENT 22.50.14 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
14 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
15 |
STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -273754 More informationQuantity required : 2 |
|||||||||
|
16 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 2 |
|||||||||
|
17 |
B015436 - STAND SPRING PIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/3/img/70573.jpg)
18 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -875111 More informationQuantity required : 1 |
|||||||||
|
19 |
B014135 - PANNEAU SUP!RIEURE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
20 |
830061 - VIS More informationQuantity required : 4 |
|||||||||
|
21 |
B015430 - SUPPORT FILTRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
22 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -431065 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/4/9/img/94549.jpg)
23 |
B014134 - PANNEAU INF!RIEURE More informationQuantity required : 1 |
|||||||||
|
24 |
B015431 - RESSORT More informationQuantity required : 1 |
|||||||||
|
25 |
1A021814R - SOUPAPE RÃ-GLAGE PRESSION HUILE More informationQuantity required : 1 |
|||||||||
|
26 |
B016425 - VIS BRIDE More informationQuantity required : 8 |
|||||||||
