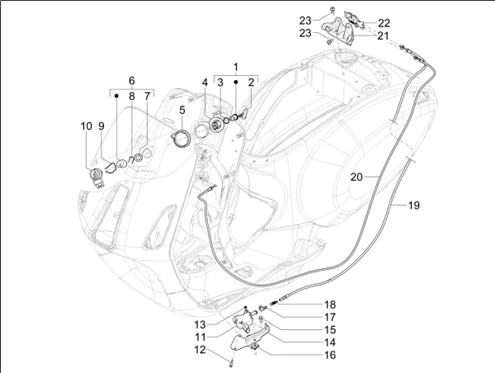

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1216/Vespa_Primavera_125_E5_2024_EMEA_02.46.png)
1 |
1B009665R - LOCK SET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/9/6/img/146396.jpg)
2 |
1B004020 - CLEF EBLANCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
3 |
LOCK GASKET RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298731 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/4/3/0/img/127430.jpg)
4 |
LOCK BODY "PIAGGIO GENUINE PART" PIAGGIO 50-125 LIBERTY 2016>, PRIMAVERA 2016>, SPRINT 2016>, 125-300 VESPA GTS 2016> -1B001876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
5 |
ANTENNA FOR CDI UNIT"PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -638534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
6 |
LOCK BLOCK "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125 VESPA GTS/GILERA 50 RUNNER/APRILIA 50 SR -1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
7 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -298594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
8 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
9 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937 More informationQuantity required : 1 |
||||||
|
10 |
1D004813R - COMMUTATEUR A CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
11 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
12 |
584121 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
13 |
577620 - ECROU More informationQuantity required : 2 |
||||||
|
14 |
674399 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
15 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
15 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
17 |
577128 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
18 |
1B003298 - RESSORT More informationQuantity required : 1 |
||||||
|
19 |
CM012851 - TRANSMISSION SELLE More informationQuantity required : 1 |
||||||
|
20 |
CM012852 - TRANSMISSION SELLE More informationQuantity required : 1 |
||||||
|
21 |
1B004682 - SUPPORT SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/2/img/72942.jpg)
22 |
SADDLE LOCK "PIAGGIO GENUINE PART" MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO -CM023701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
23 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 4 |
