Vehicle Exploded View - VESPA VESPA LX 50 4T 2006-2009 VESPA

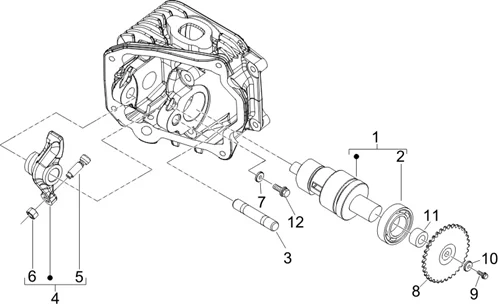

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
Groupe support balanciers
Search
CAMSHAFT "PIAGGIO GENUINE PART" 50 FLY 4 strokestroke, ZIP 4stroke, VESPA LX 4stroke, LIBERTY 4stroke, PRIMAVERA 4stroke -9692476-

1
P2R reference P2R reference 70949
Maker reference Maker reference 9692476

CAMSHAFT "PIAGGIO GENUINE PART" 50 FLY 4 STROKESTROKE, ZIP 4STROKE, VESPA LX 4STROKE, LIBERTY 4STROKE, PRIMAVERA 4STROKE -9692476-

More information

Quantity required : 1
96926R - ROULEMENT

2
P2R reference P2R reference 70955
Maker reference Maker reference 96926R

96926R - ROULEMENT

More information

Quantity required : 1
ROCKER ARM SHAFT "PIAGGIO GENUINE PART" 50 FLY 4 stroke, ZIP 4 stroke, VESPA LX 4 stroke, LIBERTY 4 stroke, PRIMAVERA 4 stroke -969268-

3
P2R reference P2R reference 70953
Maker reference Maker reference 969268

ROCKER ARM SHAFT "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, ZIP 4 STROKE, VESPA LX 4 STROKE, LIBERTY 4 STROKE, PRIMAVERA 4 STROKE -969268-

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R-

5
P2R reference P2R reference 68731
Maker reference Maker reference 82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R-

More information

Quantity required : 1
484819 - ECROU

6
P2R reference P2R reference 66667
Maker reference Maker reference 484819

484819 - ECROU

More information

Quantity required : 1
969315 - MUELLE

7
P2R reference P2R reference 70961
Maker reference Maker reference 969315

969315 - MUELLE

More information

Quantity required : 1
TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" 50 FLY 4 stroke, ZIP 4 stroke, VESPA LX 4 stroke, LIBERTY 4 stroke, PRIMAVERA 4 stroke -434943-

8
P2R reference P2R reference 66464
Maker reference Maker reference 434943

TIMING SYSTEM GEAR "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, ZIP 4 STROKE, VESPA LX 4 STROKE, LIBERTY 4 STROKE, PRIMAVERA 4 STROKE -434943-

More information

Quantity required : 1
B016426 - VIS TEF M6X14

9
P2R reference P2R reference 72706
Maker reference Maker reference B016426

B016426 - VIS TEF M6X14

More information

Quantity required : 2
436695 - CONE ELASTIQUE 6X20

10
P2R reference P2R reference 66501
Maker reference Maker reference 436695

436695 - CONE ELASTIQUE 6X20

More information

Quantity required : 1
969265 - ENTRETOISE

11
P2R reference P2R reference 70951
Maker reference Maker reference 969265

969265 - ENTRETOISE

More information

Quantity required : 1
484123 - VIS

12
P2R reference P2R reference 66655
Maker reference Maker reference 484123

484123 - VIS

More information

Quantity required : 1
