Vehicle Exploded View - VESPA VESPA LX 150 4T 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

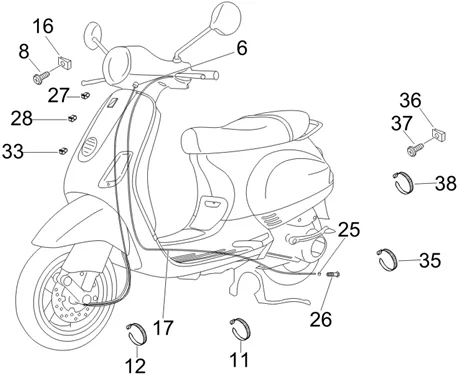

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/543/Vespa_LX_150_4T_2006_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/5/img/86945.jpg)
6 |
CABLE KIT FOR SPEEDOMETER (SCREW MOUNTING) "PIAGGIO GENUINE PART" VESPA 50-125 LX 2005> -649347- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
8 |
709674 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
16 |
564645 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/0/img/80030.jpg)
17 |
CABLE KIT FOR REAR BRAKE "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, NRG POWER DT -564217- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
25 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
26 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
27 |
CM006903 - RESSORT More informationQuantity required : 1 |
||||||
28 |
CM006904 - OLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.JPG)
33 |
CM013201 - RESSORT More informationQuantity required : 1 |
||||||
|
35 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
36 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
37 |
015911 - VIS S01591100 More informationQuantity required : 1 |
||||||
|
38 |
273779 - COLLIER More informationQuantity required : 1 |
