Vehicle Exploded View - VESPA VESPA GTV 250 ie 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

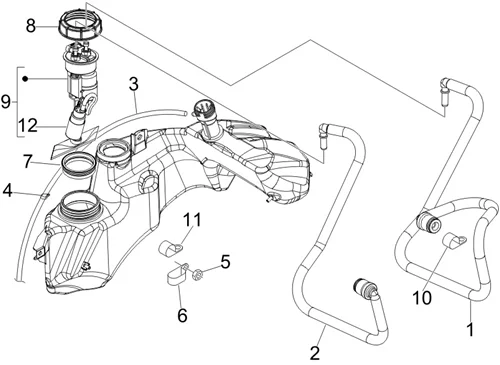

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/218/Vespa_GTV_250_ie_2006-2009_02.53.PNG)
1 |
621146 - TUBE CARBURATEUR More informationQuantity required : 1 |
||||||
|
2 |
621152 - TUBE CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
3 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.JPG)
4 |
CM013201 - RESSORT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.JPG)
5 |
969224 - ECROU More informationQuantity required : 1 |
||||||
|
6 |
621585 - COLLIERS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
7 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.JPG)
8 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/0/2/5/img/84025.jpg)
9 |
ELECTRIC FUEL PUMP "PIAGGIO GENUINE PART" VESPA GTS 250 2005>2016 -621581- More informationQuantity required : 1 |
||||||
|
10 |
675510 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
|
12 |
639357 - FILTRE POMPE ELECTRIQUE More informationQuantity required : 1 |
