Vehicle Exploded View - VESPA VESPA ET4 150 Leader 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

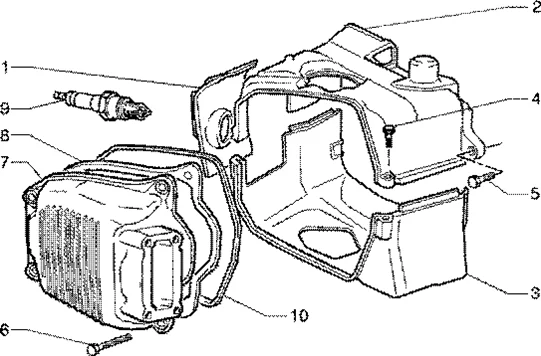

Moteur : T7 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/709/Vespa_ET4_150_Leader_1998-2005_T7.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/5/img/68535.jpg)
1 |
825368 - BOUGIE More informationQuantity required : 1 |
||||||
2 |
871762 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
|
3 |
871760 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/8/img/65398.jpg)
4 |
015835 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/1/img/66291.jpg)
5 |
296324 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
6 |
031091 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/2/img/66662.jpg)
7 |
CYLINDER HEAD COVER "PIAGGIO GENUINE PART" 125 LIBERTY, ZIP, SKIPPER, VESPA ET4/APRILIA 125 MOJITO -484573- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/9/img/66769.jpg)
8 |
ROCKER COVER GASKET "PIAGGIO GENUINE PART" 125 LIBERTY, ET4 -487968- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/4/img/67814.jpg)
9 |
SPARK PLUG "PIAGGIO GENUINE PART" CR8EB COMMON TO ALL THE MAXISCOOTER RANGE -638853- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
9 |
SPARK PLUG CHAMPION RG6YC "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -438073- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/4/img/68534.jpg)
10 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC AIR -825364- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.JPG)
11 |
231590 - CLIPS More informationQuantity required : 1 |
