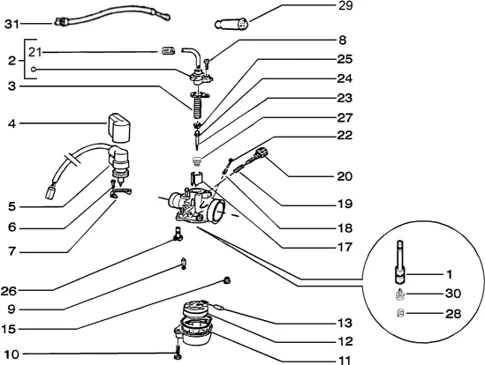

Moteur : T20/A CARBURATEUR (DELL'ORTO)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/709/Vespa_ET4_150_Leader_1998-2005_T20_A.PNG)
1 |
GIGLEUR |
||||||
|
2 |
VOLET DE GAZ |
||||||
|
2 |
CM114101 - COUVERCLE SOUPAPE More informationQuantity required : 1 |
||||||
|
3 |
829858 - RESSORT More informationQuantity required : 1 |
||||||
|
4 |
829857 - CUFFIA TERMICA More informationQuantity required : 1 |
||||||
|
5 |
829856 - DISPOSITIVO ST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
6 |
289575 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/1/img/66201.jpg)
7 |
CHOKE PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -288863- More informationQuantity required : 1 |
||||||
|
8 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/7/img/73147.jpg)
9 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER, DNA/APRILIA 50 RS, RX, SX, MOJITO -CM128502- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
10 |
288862 - VIS More informationQuantity required : 2 |
||||||
|
11 |
CM111501 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
12 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
13 |
288881 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
|
15 |
CM111701 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
15 |
Jet maximum |
||||||
|
17 |
CM112102 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
18 |
085285 - RESSORT More informationQuantity required : 1 |
||||||
|
19 |
829871 - RESSORT More informationQuantity required : 1 |
||||||
|
20 |
829860 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/3/img/66203.jpg)
21 |
SCREW - FOR CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288868 More informationQuantity required : 1 |
||||||
|
22 |
CM111901 - VIS More informationQuantity required : 1 |
||||||
|
23 |
CM111801 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
24 |
AP8222674 - AGRAFE POINTEAU CONIQUE More informationQuantity required : 1 |
||||||
|
25 |
829859 - RESSORT More informationQuantity required : 1 |
||||||
|
26 |
CM111601 - GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
|
26 |
GICLEUR |
||||||
|
27 |
829864 - RACCORD More informationQuantity required : 1 |
||||||
|
28 |
829865 - PISTON POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/7/img/70587.jpg)
29 |
875551 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
829866 - RESSORT More informationQuantity required : 1 |
||||||
|
31 |
599312 - TRANSMISSION DE GAZ More informationQuantity required : 1 |
