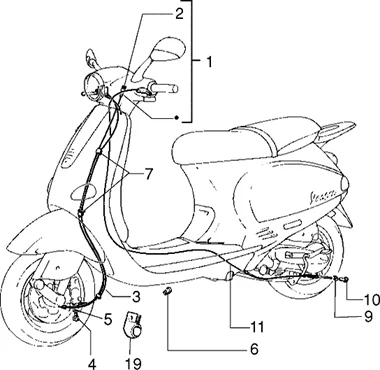

Vehicle Exploded View - VESPA VESPA 50 4T 1998-2005 VESPA

Transmisisons : T36 TRANSMISSIONS
Transmissions
Search
CABLE KIT FOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" 50 ET2 1998>2004, 125 ET4 1998>2004 -56116R-

1
P2R reference P2R reference 79772
Maker reference Maker reference 56116R

CABLE KIT FOR FOR SPEEDOMETER "PIAGGIO GENUINE PART" 50 ET2 1998>2004, 125 ET4 1998>2004 -56116R-

More information

Quantity required : 1
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806-

2
P2R reference P2R reference 79804
Maker reference Maker reference 561806

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806-

More information

Quantity required : 1
563886 - CANALISATION

3
P2R reference P2R reference 79979
Maker reference Maker reference 563886

563886 - CANALISATION

More information

Quantity required : 1
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

4
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

More information

Quantity required : 1
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

5
P2R reference P2R reference 65723
Maker reference Maker reference 127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

More information

Quantity required : 2
268172 - ATTACHE

6
P2R reference P2R reference 77195
Maker reference Maker reference 268172

268172 - ATTACHE

More information

Quantity required : 1
257134 - COLLIER

7
P2R reference P2R reference 66017
Maker reference Maker reference 257134

257134 - COLLIER

More information

Quantity required : 2
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

9
P2R reference P2R reference 65794
Maker reference Maker reference 179640

REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640-

More information

Quantity required : 1
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

10
P2R reference P2R reference 66088
Maker reference Maker reference 270310

NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310-

More information

Quantity required : 1
CABLE KIT FOR REAR BRAKE "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, NRG POWER DT -564217-

11
P2R reference P2R reference 80030
Maker reference Maker reference 564217

CABLE KIT FOR REAR BRAKE "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, NRG POWER DT -564217-

More information

Quantity required : 1
563872 - PATTES

19
P2R reference P2R reference 79976
Maker reference Maker reference 563872

563872 - PATTES

More information

Quantity required : 1
