Vehicle Exploded View - VESPA VESPA 50 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

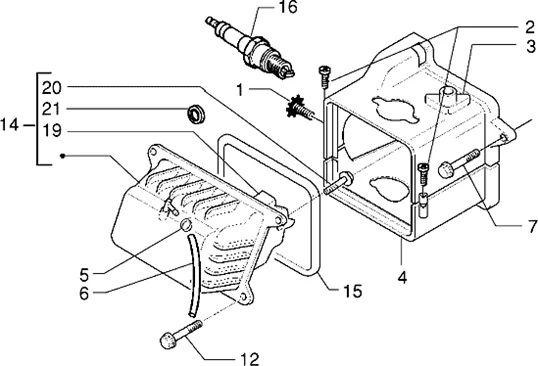

Moteur : T7 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/714/Vespa_50_4T_1998-2005_T7.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/6/img/70966.jpg)
1 |
969339 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
2 |
259577 - VIS More informationQuantity required : 1 |
||||||
3 |
828553 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/0/img/71000.jpg)
4 |
969918 - COIFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
5 |
CM002908 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/6/img/70976.jpg)
6 |
969415 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
12 |
031091 - VIS More informationQuantity required : 1 |
||||||
|
14 |
832964 - TAPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/9/7/img/69297.jpg)
15 |
843684 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
16 |
SPARK PLUG CHAMPION RG4HC "PIAGGIO GENUINE PART" COMMON TO THE RANGE -438027- More informationQuantity required : 1 |
||||||
|
19 |
969286 - PIASTRA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
20 |
430264 - VIS More informationQuantity required : 1 |
||||||
|
21 |
969894 - JOINT More informationQuantity required : 1 |
