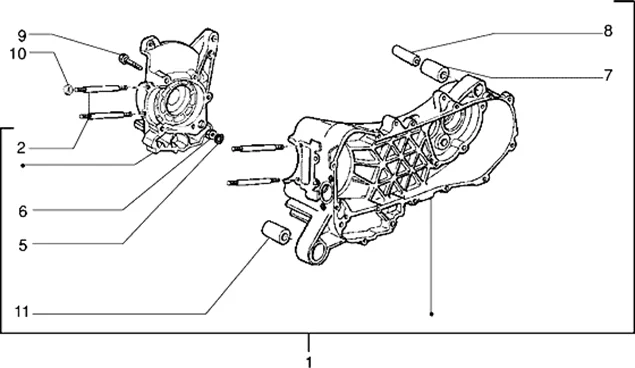

Vehicle Exploded View - VESPA VESPA 50 4T 1998-2005 VESPA

Moteur : T2 CARTER
Carter
Search
8474875 - CARTER MOTEUR

1
P2R reference P2R reference 93059
Maker reference Maker reference 8474875

8474875 - CARTER MOTEUR

More information

Quantity required : 1
969012 - GOUJON

2
P2R reference P2R reference 70927
Maker reference Maker reference 969012

969012 - GOUJON

More information

Quantity required : 4
SILENBLOC FOR CRANKCASE (SHOCK ABSORBER SUPPORT) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -267823-

7
P2R reference P2R reference 66066
Maker reference Maker reference 267823

SILENBLOC FOR CRANKCASE (SHOCK ABSORBER SUPPORT) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -267823-

More information

Quantity required : 1
SPACER- FOR ABSORBER SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -266625-

8
P2R reference P2R reference 66054
Maker reference Maker reference 266625

SPACER- FOR ABSORBER SILENTBLOC "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -266625-

More information

Quantity required : 1
478895 - VIS

9
P2R reference P2R reference 66569
Maker reference Maker reference 478895

478895 - VIS

More information

Quantity required : 2
969224 - ECROU

10
P2R reference P2R reference 70940
Maker reference Maker reference 969224

969224 - ECROU

More information

Quantity required : 1
SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081-

11
P2R reference P2R reference 66704
Maker reference Maker reference 486081

SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081-

More information

Quantity required : 1
