Vehicle Exploded View - DERBI VARIANT REVOLUTION 50 VARIANT REVOLUTION 2003 E1
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

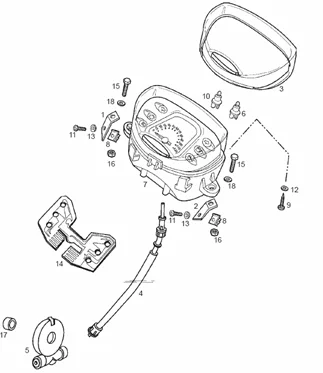

Tables : 13 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1064/VARIANT_REVOLUTION_2003_E1_13.png)
1 |
00F01600961 - PONTET FIX. COMPTEUR More informationQuantity required : 1 |
||||||
|
2 |
00F01602521 - PONTET FIX. COMPTEUR More informationQuantity required : 1 |
||||||
|
3 |
00G01603071 - R-GLACE COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
4 |
00F01605021 - ENSEMB.CABLE-GAINE COMPTEURKM More informationQuantity required : 1 |
||||||
|
5 |
00F01602051 - ENSEMBLE RENVOI More informationQuantity required : 1 |
||||||
|
6 |
00G01602581 - R-PORTE-LAMPES More informationQuantity required : 1 |
||||||
|
7 |
00F04308031 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
7 |
00F04309031 - TABLEAU DE BORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
10 |
00G01601581 - R-PORTE-LAMPES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
11 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
12 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
13 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
14 |
00F04300601 - CIRCUIT IMPRIME TABLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/6/img/63586.JPG)
16 |
NUT (6M100) "PIAGGIO GENUINE PART" -00000021060- More informationQuantity required : 1 |
||||||
|
17 |
00F01201291 - ENTRETOISE COTE FLASQUE More informationQuantity required : 1 |
