Vehicle Exploded View - DERBI VARIANT REVOLUTION 50 VARIANT REVOLUTION 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

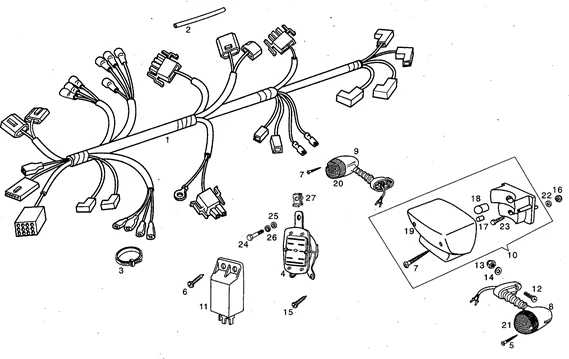

Châssis - parties plastiques - carrosseries : 9 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1063/VARIANT_REVOLUTION_1998-2001_9.png)
1 |
00F01027301 - CTO.INST.ELECT.V.REV.98 More informationQuantity required : 1 |
||||||
|
3 |
00A00900531 - COLLIER More informationQuantity required : 1 |
||||||
|
4 |
00F01004311 - AVERTISSEUR More informationQuantity required : 1 |
||||||
|
5 |
00F01000591 - VIS FIX.CABOCHON More informationQuantity required : 1 |
||||||
|
7 |
00G01701091 - BOULON SERRAGE GLACE CLIGNOTAN More informationQuantity required : 1 |
||||||
|
8 |
00F01703301 - ENS.CLIGNOTANT ARR.DROITE More informationQuantity required : 1 |
||||||
|
9 |
00F01703391 - ENS.CLIGNOTANT ARR. GAUCHE More informationQuantity required : 1 |
||||||
|
10 |
00F01003321 - FEU ARR. More informationQuantity required : 1 |
||||||
|
11 |
00F01740401 - CENTRALE CLIGNOTEURS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
12 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
13 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
14 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
15 |
00011031401 - VIS TARAUD 3,6X14 NOIR CL89H More informationQuantity required : 1 |
||||||
|
17 |
00F01000791 - LAMPE DE POSITION 12V. 4W. BA9 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
18 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
|
19 |
00F01003341 - CABOCHON DU FEU ARRIERE More informationQuantity required : 1 |
||||||
|
20 |
00G01702902 - GLACE CLIGNOTANT ARRIERE GAUCH More informationQuantity required : 1 |
||||||
|
21 |
00G01702892 - GLACE CLIGNOTANT ARRIERE DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
22 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
27 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
