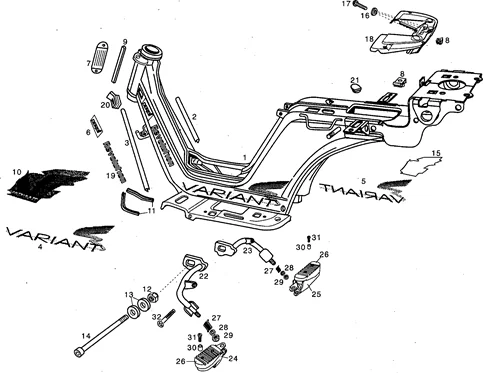

Châssis - parties plastiques - carrosseries : 1 PORTE-BAGAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1063/VARIANT_REVOLUTION_1998-2001_1.png)
1 |
00F01968601 - R-SCTO.CUAD.NG.C/C.VRNT 96 More informationQuantity required : 1 |
||||||
|
1 |
00F01969604 - R-SCTO.CUAD.AZ.HIGUER REV.GS01 More informationQuantity required : 1 |
||||||
|
1 |
00F01969603 - R-SCTO.CUAD.GR.CROMO REV.GS00 More informationQuantity required : 1 |
||||||
|
1 |
00F01969602 - R-SCTO.CUAD.NG.BAUX.VR 96 G.S. More informationQuantity required : 1 |
||||||
|
1 |
00F01969601 - R-SCTO.CUAD.NG.BAUX.VR 96 G.S. More informationQuantity required : 1 |
||||||
|
1 |
00F01968603 - R-SCTO.CUAD.C/C.REV.AZ.HIG. More informationQuantity required : 1 |
||||||
|
1 |
00F01968602 - R-SCTO.CUAD.NG.C/C.VR 96 G/NG. More informationQuantity required : 1 |
||||||
|
2 |
00A01500352 - ENJOLIVEUR SUP.NOIR AVANT CADR More informationQuantity required : 1 |
||||||
|
3 |
00F01510341 - ENJOLIVEUR SUP.NOIR AVANT CADR More informationQuantity required : 1 |
||||||
|
4 |
00F05903233 - CALCA INF.IZ.CUAD.REV.GS 00 More informationQuantity required : 1 |
||||||
|
4 |
00F05903231 - ADHESIF. More informationQuantity required : 1 |
||||||
|
4 |
00F01507403 - CALCA LAT.IZ.CHASIS REV 01 AZ. More informationQuantity required : 1 |
||||||
|
4 |
00F01507402 - CALCA LAT.IZ.CHASIS VRNT 96 More informationQuantity required : 1 |
||||||
|
4 |
00F01507401 - CALCA LAT.IZ.CHASIS VRNT 96 More informationQuantity required : 1 |
||||||
|
5 |
00F05903223 - CALCA INF.DR.CUAD.REV.GS 00 More informationQuantity required : 1 |
||||||
|
5 |
00F05903221 - ADHESIF. More informationQuantity required : 1 |
||||||
|
5 |
00F01808963 - CALCA LAT.DR.CHASIS REV 01 AZ. More informationQuantity required : 1 |
||||||
|
5 |
00F01808962 - CALCA LAT.DR.CHASIS VRNT 96 More informationQuantity required : 1 |
||||||
|
5 |
00F01808961 - CALCA LAT.DR.CHASIS VRNT 96 More informationQuantity required : 1 |
||||||
|
6 |
00F01509781 - ADHESIF More informationQuantity required : 1 |
||||||
|
7 |
00F01815101 - PLAQUE CARACTERISTIQUES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
9 |
00F04900761 - ENJOLIVEUR SUP.NOIR AVANT CADR More informationQuantity required : 1 |
||||||
|
10 |
00F01508403 - CALCA LAT.IZ.CHASIS REV 00 GS More informationQuantity required : 1 |
||||||
|
10 |
00F01508402 - CALCA LAT.IZ.CHASIS VR 96 G.S. More informationQuantity required : 1 |
||||||
|
10 |
00F01508401 - CALCA LAT.IZ.CHASIS VR 96 G.S. More informationQuantity required : 1 |
||||||
|
11 |
00F04901761 - ENJOLIVEUR SUP.NOIR AVANT CADR More informationQuantity required : 1 |
||||||
|
13 |
00F02500981 - RONDELLE INF.MOTEUR More informationQuantity required : 1 |
||||||
|
14 |
00F03002271 - AXE FIX. AV. MOT. More informationQuantity required : 1 |
||||||
|
15 |
00F01809963 - CALCA LAT.DR.CHASIS REV 00 GS More informationQuantity required : 1 |
||||||
|
15 |
00F01809962 - CALCA LAT.DR.CHASIS VR 96 G.S. More informationQuantity required : 1 |
||||||
|
15 |
00F01809961 - CALCA LAT.DR.CHASIS VR 96 G.S. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
17 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
|
18 |
00F00601091 - SOPTE.TR.SILLIN.VRNT 96 More informationQuantity required : 1 |
||||||
|
19 |
00F01508731 - CALCA REVOLUTION VRNT 96 More informationQuantity required : 1 |
||||||
|
19 |
00F01512731 - CALCA REVOLUTION GS REV 01 More informationQuantity required : 1 |
||||||
|
20 |
00F01503021 - PASSE CABLES VARIANT More informationQuantity required : 1 |
||||||
|
20 |
00A01560021 - PASACAB.LAT.DTROS.CHAS.VARIANT More informationQuantity required : 1 |
||||||
|
21 |
00F01800221 - BOUCHON ESSENCE NIVEAU More informationQuantity required : 1 |
||||||
|
22 |
00F00102671 - REPOSE-PIED CONDUCTEUR GAUCHE More informationQuantity required : 1 |
||||||
|
23 |
00F00102701 - REPOSE-PIED CONDUCTEUR DROIT More informationQuantity required : 1 |
||||||
|
24 |
00F02201311 - REPOSE-PIED CONDUCTEUR GAUCHE More informationQuantity required : 1 |
||||||
|
25 |
00F02201301 - REPOSE-PIED CONDUCTEUR DROIT More informationQuantity required : 1 |
||||||
|
26 |
00F01502101 - PROTECTEUR REPOSE-PIED More informationQuantity required : 1 |
||||||
|
27 |
00F01500161 - MUELLE RECUPER.ESTRIB.VRNT.96 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
28 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
29 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
|
30 |
00F01500151 - ENTRETOISE More informationQuantity required : 1 |
