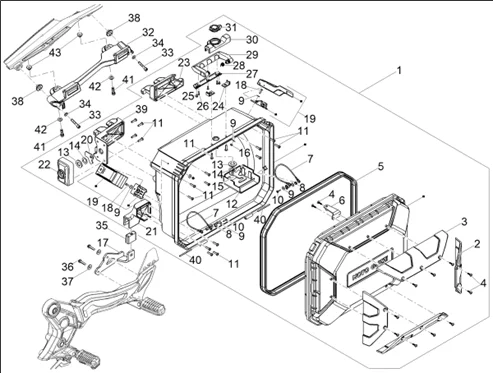

Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)

	P2R reference	219979
	Maker reference	2B012312

2B012312 - LEFT CASE

	P2R reference	219977
	Maker reference	2B012309

2B012309 - CACHE LATERAL

	P2R reference	219978
	Maker reference	2B012310

2B012310 - PROTECTION SUPERIEURE

	P2R reference	73372
	Maker reference	CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

	P2R reference	172691
	Maker reference	2B005971

2B005971 - JOINT

	P2R reference	172692
	Maker reference	2B006027

2B006027 - BRIDE

	P2R reference	72147
	Maker reference	AP8201855

AP8201855 - CABLE COFFRE AR;

	P2R reference	100927
	Maker reference	AP8706322

AP8706322 - BOCCOLA AGGANCIO CAVALLETTO

	P2R reference	71895
	Maker reference	AP8150501

AP8150501 - ROSETTA M4

	P2R reference	71876
	Maker reference	AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

	P2R reference	71970
	Maker reference	AP8152329

AP8152329 - VIS SWP CROIS. BRID.

	P2R reference	172693
	Maker reference	2B005993

2B005993 - PROTECTION

	P2R reference	63730
	Maker reference	000320150005

FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000-

	P2R reference	50888
	Maker reference	AP8150471

AP8150471 - RONDELLE ELASTIQUE

	P2R reference	172694
	Maker reference	2B005989

2B005989 - LOQUET

	P2R reference	71839
	Maker reference	AP8150204

AP8150204 - ECROU AUTOFR. BAS

	P2R reference	172711
	Maker reference	2B006249

2B006249 - SUPPORT GAUCHE

	P2R reference	46742
	Maker reference	AP8121184

AP8121184 - VITE TBCE M4X14

	P2R reference	172696
	Maker reference	2B005975

2B005975 - CAME FERMETURE

	P2R reference	172697
	Maker reference	2B006029

2B006029 - PLAQUE SERRURE

	P2R reference	172712
	Maker reference	2B005982

2B005982 - INSERT VALISE

	P2R reference	172699
	Maker reference	2B005990

2B005990 - CAPOT

	P2R reference	172713
	Maker reference	2B005986

2B005986 - ACCROCHEMENT

	P2R reference	172701
	Maker reference	2B006158

2B006158 - FERMETURE

	P2R reference	72286
	Maker reference	AP8220488

AP8220488 - CAOUTCHOUC CHAMPIGNON;

	P2R reference	71879
	Maker reference	AP8150421

AP8150421 - VIS TARAUD POUR PLAST. INOX

	P2R reference	172702
	Maker reference	2B006156

2B006156 - CAPOT

	P2R reference	172703
	Maker reference	2B006150

2B006150 - RESSORT

	P2R reference	172704
	Maker reference	2B006155

2B006155 - POIGNEE

	P2R reference	172705
	Maker reference	2B006159

2B006159 - SUPPORT POIGNEE

	P2R reference	172706
	Maker reference	2B006655

2B006655 - BOUCHON

	P2R reference	219966
	Maker reference	2B011428

2B011428 - SUPPORT GAUCHE

	P2R reference	164301
	Maker reference	B043041

B043041 - VIS M8X45

	P2R reference	72040
	Maker reference	AP8163165

AP8163165 - RONDELLE INOX

	P2R reference	171521
	Maker reference	2B005994

2B005994 - BAG BUFFER

	P2R reference	71942
	Maker reference	AP8152279

AP8152279 - VIS BRIDE

	P2R reference	71872
	Maker reference	AP8150378

AP8150378 - RONDELLE

	P2R reference	219967
	Maker reference	2B012340

2B012340 - DOUILLE

	P2R reference	172715
	Maker reference	2B005981

2B005981 - ACCROCHEMENT

	P2R reference	172709
	Maker reference	2B006059

2B006059 - BAG HINGE PIN

	P2R reference	139359
	Maker reference	B043044

B043044 - VIS

	P2R reference	218513
	Maker reference	GU950053106

GU950053106 - WASHER 8.4X18X2 INOX AISI 304

	P2R reference	72297
	Maker reference	AP8221128

AP8221128 - "DOUILLE EN ""T"" 8,5X10,7X12"
