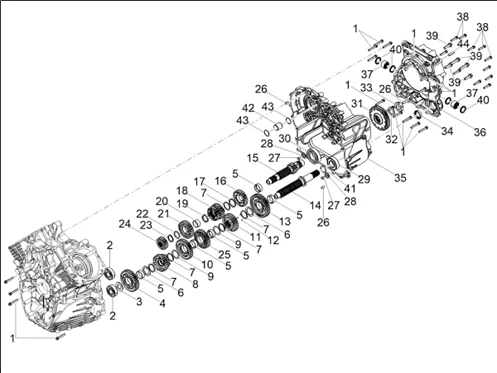

Vehicle Exploded View - MOTO-GUZZI V100 1000 Mandello E5 ABS 2022-2024 (EMEA)

	P2R reference	70532
	Maker reference	874550

874550 - VIS

	P2R reference	175562
	Maker reference	2A001078R

2A001078R - RADIAL BALL BEARING

	P2R reference	208536
	Maker reference	2A001456

2A001456 - RONDELLE D'éPAULEMENT

	P2R reference	203589
	Maker reference	2A001353

2A001353 - 2ND SPEED GEAR (DRIVEN SHAFT)

	P2R reference	208537
	Maker reference	2A001486

2A001486 - PIGNON DE LA 2EME VITESSE SUR L'ARBRE SE

	P2R reference	69598
	Maker reference	849308

849308 - MOYEU

	P2R reference	69599
	Maker reference	849309

849309 - RONDELLE

	P2R reference	97983
	Maker reference	1A002604

1A002604 - ANELLO ELASTICO PER ALBERO

	P2R reference	203590
	Maker reference	2A001357

2A001357 - DRIVEN SHAFT 6TH SPEED GEAR

	P2R reference	208538
	Maker reference	2A001487

2A001487 - DRIVEN SHAFT 6TH SPEED GEAR

	P2R reference	69600
	Maker reference	849310

849310 - RONDELLE

	P2R reference	203591
	Maker reference	2A001238

2A001238 - 3RD SPEED GEAR (DRIVEN SHAFT)

	P2R reference	208539
	Maker reference	2A001509

2A001509 - PIGNON 3èME VITESSE

	P2R reference	220119
	Maker reference	2A001430

2A001430 - ENGRENAGE 5EME VITESSE

	P2R reference	208540
	Maker reference	2A001506

2A001506 - ENGRENAGE 5EME VITESSE

	P2R reference	203592
	Maker reference	2A001391

2A001391 - BALL

	P2R reference	203593
	Maker reference	2A001352

2A001352 - 1ST GEAR (DRIVEN SHAFT)

	P2R reference	208541
	Maker reference	2A001492

2A001492 - PIGNON 1èRE VITESSE

	P2R reference	203594
	Maker reference	2A001329

2A001329 - DRIVEN SHAFT

	P2R reference	208542
	Maker reference	2A001459

2A001459 - ARBRE SECONDAIRE BOîTE DE VITESSES

	P2R reference	208543
	Maker reference	2A001428

2A001428 - ARBRE PRIMAIRE BOITE DE VITESSES

	P2R reference	216331
	Maker reference	1A026465

1A026465 - ARBRE PRIMAIRE BOITE DE VITESSES

	P2R reference	203595
	Maker reference	2A001244

2A001244 - DRIVERSHAFT 5° SPEED GEAR

	P2R reference	69602
	Maker reference	849424

849424 - RONDELLE

	P2R reference	208544
	Maker reference	2A001427

2A001427 - ENGREN. 3-4.èME

	P2R reference	216332
	Maker reference	1A026464

1A026464 - ENGREN. 3-4.EME

	P2R reference	109055
	Maker reference	B015040

B015040 - RONDELLE D'APPUI

	P2R reference	71005
	Maker reference	974162

974162 - MOYEU

	P2R reference	203596
	Maker reference	2A001319

2A001319 - DRIVERSHAFT 6° SPEED GEAR

	P2R reference	69601
	Maker reference	849396

849396 - RONDELLE

	P2R reference	71006
	Maker reference	974165

974165 - CIRCLIPS

	P2R reference	203597
	Maker reference	2A001242

2A001242 - DRIVERSHAFT 2° SPEED GEAR

	P2R reference	203598
	Maker reference	2A001239

2A001239 - 4TH SPEED GEAR (DRIVEN SHAFT)

	P2R reference	208545
	Maker reference	2A001505

2A001505 - PIGNON 4èME VITESSE

	P2R reference	66142
	Maker reference	277916

CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916-

	P2R reference	72638
	Maker reference	B013608

B013608 - VIS

	P2R reference	208546
	Maker reference	2A001454

2A001454 - RONDELLE éVASéE

	P2R reference	132390
	Maker reference	GU92201226

GU92201226 - ROULEMENT A BILLES 25X52X15

	P2R reference	203599
	Maker reference	1A003038

1A003038 - DEEP GROOVE BALL BEARING

	P2R reference	220120
	Maker reference	1A024139

1A024139 - ENGRENAGE TRANSMISSION

	P2R reference	208547
	Maker reference	1A020071

1A020071 - ENGRENAGE TRANSMISSION

	P2R reference	203600
	Maker reference	876337

876337 - BELLEVILLE WASHER

	P2R reference	41497
	Maker reference	878296

878296 - ECROU

	P2R reference	203601
	Maker reference	B018223

B018223 - SEAL RING

	P2R reference	208548
	Maker reference	2A001453

2A001453 - CARTER DE BOîTE VITESSES

	P2R reference	203602
	Maker reference	1A020945

1A020945 - GEAR BOX COVER

	P2R reference	208549
	Maker reference	2A001499

2A001499 - COUVERCLE CHANGEMENT

	P2R reference	45824
	Maker reference	AP8110067

AP8110067 - CAGE A ROULEAUX

	P2R reference	41403
	Maker reference	874551

874551 - VIS BRIDE

	P2R reference	72731
	Maker reference	B016806

B016806 - VIS M8X40

	P2R reference	171503
	Maker reference	2B005214

2B005214 - RADIAL SHAFT SEAL Ø22XØ28X4

	P2R reference	220121
	Maker reference	2A001457

2A001457 - RONDELLE D'EPAULEMENT

	P2R reference	203603
	Maker reference	1A020040

1A020040 - METALLIC TUBE

	P2R reference	203464
	Maker reference	B019103

B019103 - O-RING (26.7X1.78)

	P2R reference	220122
	Maker reference	1A024042

1A024042 - SCREW WITHOUT HEAD
