Vehicle Exploded View - MOTO-GUZZI V35 350 V 35 C - V 50 C 350 1982-1986
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

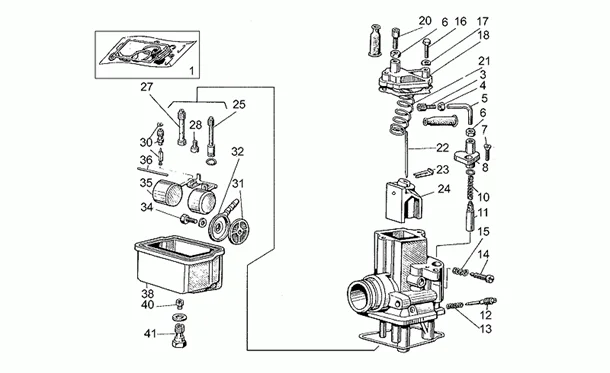

Moteur : 34.19 CARBURATEURS V35C
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/917/V_35_C_-_V_50_C_350_1982-1986_34.19.png)
1 |
GU17939950 - KIT JOINTS CARBURATEUR More informationQuantity required : 2 |
||||||
|
3 |
GU53937200 - VIS TENDEUR DE FIL More informationQuantity required : 2 |
||||||
|
4 |
GU19938880 - ECROU More informationQuantity required : 2 |
||||||
|
5 |
GU49938900 - TUYAU More informationQuantity required : 2 |
||||||
|
6 |
|
||||||
|
7 |
GU13937900 - VIS More informationQuantity required : 2 |
||||||
|
8 |
GU17937450 - COUVERCLE SOUPAPE More informationQuantity required : 2 |
||||||
|
10 |
GU39937600 - RESSORT More informationQuantity required : 2 |
||||||
|
11 |
GU13937800 - SOUPAPE DE DEMARRAGE More informationQuantity required : 2 |
||||||
|
12 |
GU13936200 - VIS REGLAGE MINIMUM More informationQuantity required : 2 |
||||||
|
13 |
GU13936300 - RESSORT More informationQuantity required : 2 |
||||||
|
14 |
GU13936600 - VIS REGLAGE SOUPAPE GAZ More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
15 |
152608 - VIS More informationQuantity required : 2 |
||||||
|
16 |
|
||||||
|
17 |
GU13932900 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
18 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
20 |
GU12937200 - VIS TENDEUR DE FIL More informationQuantity required : 2 |
||||||
|
21 |
GU53937100 - RESSORT More informationQuantity required : 2 |
||||||
|
24 |
|
||||||
|
25 |
GU19936000 - JET DEMARRAGE 60 More informationQuantity required : 2 |
||||||
|
27 |
GU19935500 - GICLEUR 260AH More informationQuantity required : 2 |
||||||
|
28 |
GU19935900 - GICLEUR DE RALENTI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/4/2/img/129742.jpg)
30 |
GU19934600 - VANNE POINTEAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.jpg)
31 |
GU43934000 - FILTRE ESSENCE More informationQuantity required : 2 |
||||||
|
32 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE More informationQuantity required : 2 |
||||||
|
34 |
|
||||||
|
35 |
GU61934300 - FLOTTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
36 |
GU13933100 - AXE DE FLOTTEUR More informationQuantity required : 2 |
||||||
|
38 |
|
||||||
|
40 |
GU19935701 - GICLEUR PRINCIPAL More informationQuantity required : 2 |
||||||
|
41 |
GU10933700 - BOUCHON More informationQuantity required : 2 |
