Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

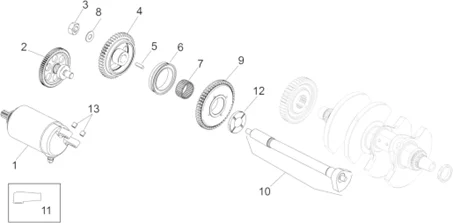

Moteur : 29.50 GROUPE ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1224/Tuono_V4_Factory_1100_E4_Superpole_ABS_2019_(EMEA)_29.50.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/7/0/img/108970.JPG)
1 |
B044495 - DEMARREUR More informationQuantity required : 1 |
||||||
2 |
899769 - RENVOI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/5/6/img/42756.JPG)
3 |
897434 - ECROU BRIDE More informationQuantity required : 1 |
||||||
|
4 |
2A000468 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
5 |
857298 - GOUJON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/0/img/146190.jpg)
6 |
STARTER FREEWHEEL "PIAGGIO GENUINE PART" APRILIA 1000 TUONO, RSV-4/PIAGGIO 125-350-500 BEVERLY, 400 X8, 125-300 VESPA GTS/GILERA 500 NEXUS -1A008691- More informationQuantity required : 1 |
||||||
|
7 |
857290 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
8 |
235779 - RONDELLE More informationQuantity required : 1 |
||||||
|
9 |
899862 - ENGRENAGE ROUE LIBRE More informationQuantity required : 1 |
||||||
|
10 |
2A000469 - CONTRE-ARBRE More informationQuantity required : 1 |
||||||
|
11 |
895316 - CAPUCHON More informationQuantity required : 1 |
||||||
|
12 |
2A000547 - ROULEMENT More informationQuantity required : 1 |
||||||
|
13 |
2A000313 - ENTRETOISE More informationQuantity required : 2 |
