Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

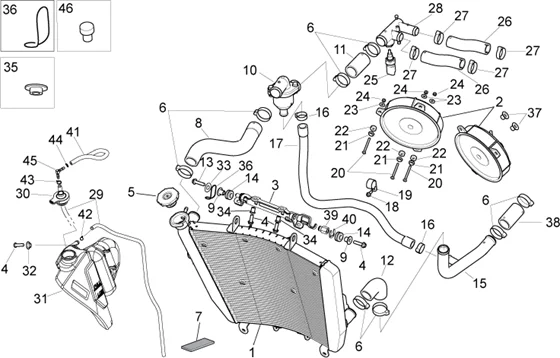

Cadre : 28.21 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1224/Tuono_V4_Factory_1100_E4_Superpole_ABS_2019_(EMEA)_28.21.png)
1 |
2B0038346 - WATER COOLER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/1/0/2/img/176102.JPG)
2 |
2D000603 - AXIAL ELECTRIC FAN More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/8/1/9/img/42819.jpg)
3 |
897775 - SUPPORT RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/0/9/4/img/42094.jpg)
5 |
893954 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
6 |
CM269609 - COLLIER SERR. TUBE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
7 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 2 |
||||||
|
8 |
2B002204 - TUYAU RADIATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
9 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/7/0/img/40070.jpg)
10 |
THERMOSTAT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -856279- More informationQuantity required : 1 |
||||||
|
11 |
2B002207 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/8/3/img/49583.JPG)
12 |
AP8144033 - TUY.THERMOS.-POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
13 |
AP8150444 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
14 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
15 |
858488 - TUYAU RADIATEUR More informationQuantity required : 1 |
||||||
|
16 |
CM269603 - COLLIER More informationQuantity required : 2 |
||||||
|
17 |
2B002208 - TUY.THERMOSTAT-MOT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
18 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
19 |
893224 - COLLIER More informationQuantity required : 1 |
||||||
|
20 |
893514 - VIS FHC More informationQuantity required : 6 |
||||||
|
21 |
893823 - RONDELLE More informationQuantity required : 6 |
||||||
|
22 |
893513 - ENTRETOISE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
23 |
AP8150011 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
24 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/0/img/67880.jpg)
25 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER/GILERA 50 SMT, RCR 2018> -640485- More informationQuantity required : 1 |
||||||
|
26 |
2B002203 - TUYAU MOTEUR-COLLEC. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/3/1/4/img/97314.jpg)
27 |
AP9100456 - FASCETTA CLIC 26X8 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/1/1/9/img/40119.JPG)
28 |
856543 - COLLECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
29 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 2 |
||||||
|
30 |
899642 - BOUCHON More informationQuantity required : 1 |
||||||
|
31 |
2B003557 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
|
32 |
AP8221145 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
33 |
AP8150158 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
34 |
AP8121728 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.JPG)
35 |
AP8121991 - DOUILLE; More informationQuantity required : 1 |
||||||
|
36 |
AP8221150 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
37 |
895450 - DOUILLE FILETEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/8/4/5/img/49845.JPG)
38 |
AP8144720 - MANICOTTO More informationQuantity required : 1 |
||||||
|
39 |
898047 - INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
40 |
STOP RING FOR FOOTREST "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA +MOTO-GUZZI MOTORBIKE RANGE -AP8120573- More informationQuantity required : 1 |
||||||
|
41 |
899881 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
42 |
AP8101595 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
43 |
AP8102520 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
44 |
AP8101595 - COLLIER More informationQuantity required : 1 |
||||||
|
45 |
856082 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.JPG)
46 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 2 |
