Vehicle Exploded View - APRILIA TUONO 1100 Tuono V4 Factory 1100 E4 Superpole ABS 2019 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

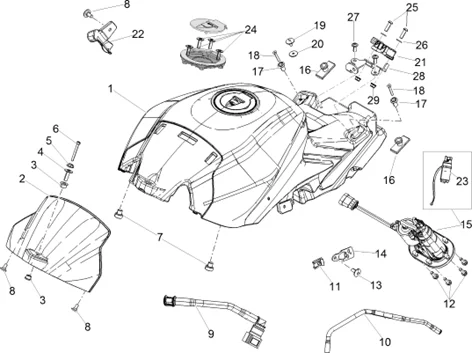

Cadre : 28.14 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1224/Tuono_V4_Factory_1100_E4_Superpole_ABS_2019_(EMEA)_28.14.png)
1 |
2H003268600Z4 - FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
2H003043600Z3 - FUEL TANK More informationQuantity required : 1 |
||||||
|
2 |
B04454700NV - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
2 |
B04454700XN2 - CACHE-RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
3 |
AP8101372 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
4 |
B044548 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.JPG)
5 |
AP8150536 - ROSETTA SPECIALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
6 |
AP8150403 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
7 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/3/2/img/40632.jpg)
9 |
FUEL HOSE "PIAGGIO GENUINE PART" 1000 RSV-4, TUONO V4 -858884- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/9/4/img/42394.JPG)
10 |
895959 - TUYAU PURGE RESER. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
12 |
AP8152273 - VIS BRIDE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.JPG)
13 |
AP8150538 - VITE TBEI M5 X 10 More informationQuantity required : 1 |
||||||
|
14 |
858886 - SUPPORT FLANC G More informationQuantity required : 1 |
||||||
|
15 |
2B010727 - POMPE A CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
16 |
AP8120663 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
17 |
893273 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
18 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -576836- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
19 |
FUEL TANK FASTENING SCREW "PIAGGIO GENUINE PARTS" APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD -AP8161127- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
20 |
AP8150255 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
2D000517 - DETECTEUR More informationQuantity required : 1 |
||||||
|
22 |
B044550 - SUPPORT More informationQuantity required : 1 |
||||||
|
23 |
899068 - DETECTEUR More informationQuantity required : 1 |
||||||
|
24 |
B043864 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
25 |
AP8224470 - VIS More informationQuantity required : 2 |
||||||
|
26 |
GU95005306 - RONDELLE 6,4X13X1,5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.JPG)
27 |
GU98210612 - VIS More informationQuantity required : 2 |
||||||
|
28 |
2B002985 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
29 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
All the exploded views of this vehicle
-
