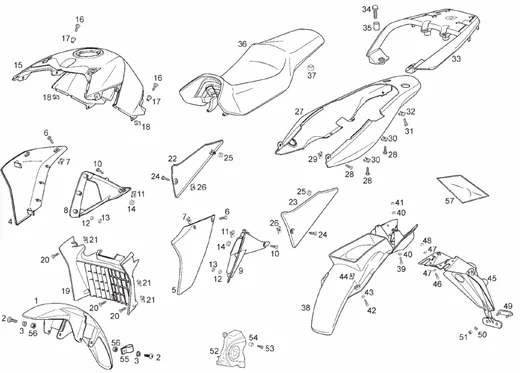

Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)

	P2R reference	189053
	Maker reference	864958

864958 - GUARDAB.DLNT.TER125 ADV

	P2R reference	64544
	Maker reference	00H01503701

00H01503701 - VIS M6X25

	P2R reference	65337
	Maker reference	00N01000821

SPACER- FOR REAR SIDE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00N01000821

	P2R reference	189054
	Maker reference	86321600WT25

86321600WT25 - R-TAPA LAT.DLNT.DR.NRJA.IRS.TER125 ADV

	P2R reference	189055
	Maker reference	86321600WB15

86321600WB15 - R-TAPA LAT.DLNT.DR.BLN.AJD.TER125 ADV

	P2R reference	189056
	Maker reference	86321700WB15

86321700WB15 - R-TAPA LAT.DLNT.IZ.BLN.AJD.TER125 ADV

	P2R reference	189057
	Maker reference	86321700WT25

86321700WT25 - R-TAPA LAT.DLNT.IZ.NRJA.IRS.TER125 ADV

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	189025
	Maker reference	863222

863222 - TAPA LAT.INF.DR.DPSTO.TER125

	P2R reference	189026
	Maker reference	863221

863221 - TAPA LAT.INF.IZ.DPSTO.TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	71410
	Maker reference	AP8120622

FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239

	P2R reference	189027
	Maker reference	00H06303771

00H06303771 - TOPE INT.CAREN.GPR RAC.

	P2R reference	189058
	Maker reference	86321900WT25

86321900WT25 - R-CUBRE-DEPSTO.NRJA.IRS.TER125 ADV

	P2R reference	189059
	Maker reference	86321900WB15

86321900WB15 - CACHE-RESERVOIR

	P2R reference	64544
	Maker reference	00H01503701

00H01503701 - VIS M6X25

	P2R reference	189033
	Maker reference	864109

864109 - DOUILLE

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	189034
	Maker reference	863227

863227 - REJILLA RADIADOR TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	189035
	Maker reference	864051

864051 - TAPA LATRL.DR.CAJA FILTRO TER125

	P2R reference	189036
	Maker reference	864052

864052 - TAPA LATRL.IZ.CAJA FILTRO TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	154576
	Maker reference	2B005447

2B005447 - CAOUTCHOUC

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	189060
	Maker reference	86322800WT25

86322800WT25 - R-COLIN SILLIN NRJA.IRS.TER125 ADV

	P2R reference	189061
	Maker reference	86322800WB1

86322800WB1 - COLIN SILLIN BLN.AJD.TER125 ADV

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	63664
	Maker reference	000080615005

00008061500 - VIS A TETE RONDE 6M100X16

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	189042
	Maker reference	86322600WN15

86322600WN15 - R-PORTAPAQ.AGARRAD.NGR.API.TER125

	P2R reference	63657
	Maker reference	000060830005

00006083000 - VIS A TETE HEXAGON.AVEC BRIDE

	P2R reference	189044
	Maker reference	864131

864131 - CASQ.FIJ.PORTAPAQ.TER125

	P2R reference	189045
	Maker reference	8632640001

8632640001 - CTO.SILLIN TER125

	P2R reference	189046
	Maker reference	862000

862000 - SILENT BLOCK

	P2R reference	189047
	Maker reference	863223

863223 - GUARDAB.TRASERO TER125

	P2R reference	69497
	Maker reference	847227

847227 - BOULON

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001

	P2R reference	63589
	Maker reference	000000230505

00000023050 - ECROU

	P2R reference	69497
	Maker reference	847227

847227 - BOULON

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	189048
	Maker reference	863224

863224 - SUPLEM.GUARDAB.TRAS.TER125

	P2R reference	69497
	Maker reference	847227

847227 - BOULON

	P2R reference	64840
	Maker reference	00H03800722

00H03800722 - RONDELLE

	P2R reference	63589
	Maker reference	000000230505

00000023050 - ECROU

	P2R reference	71568
	Maker reference	AP8124718

UPPER SPEEDOMETER COVER "PIAGGIO GENUINE PART" 50-125 FLY 2012> -5A000001

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	63588
	Maker reference	000000230405

00000023040 - ECROU INDESSERABLE4M70

	P2R reference	154421
	Maker reference	863250

863250 - TAPA PIÐON SAL.CAMBIO TER125

	P2R reference	64572
	Maker reference	00H01600911

00H01600911 - ENTRETOISE

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060

	P2R reference	189062
	Maker reference	86749700W0B

86749700W0B - DECALCO SERIE

	P2R reference	189063
	Maker reference	865487

865487 - KIT CALCAS TERRA ADVENTURE
