Vehicle Exploded View - APRILIA SRV 850 4T 8V E3 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

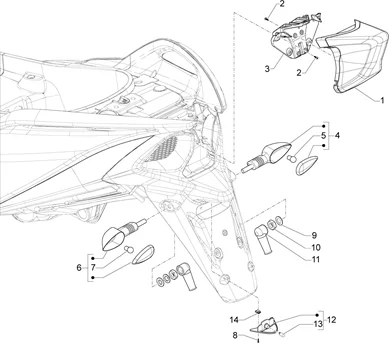

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/581/SRV_850_4T_8V_E3_2012-2013_06.04.PNG)
1 |
643302 - FEU ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 8 |
||||||
|
3 |
674822 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/2/img/67872.jpg)
4 |
FLASHER-FRONT-LEFT/REAR-RIGHT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -6402445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/7/3/img/67873.jpg)
6 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" 250-300-400-500 MP3 -6402455 More informationQuantity required : 1 |
||||||
|
7 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
8 |
015859 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
9 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
||||||
|
10 |
675307 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/0/img/67200.jpg)
11 |
581061 - CAPUCHON More informationQuantity required : 2 |
||||||
|
12 |
641355000C - FEU PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
14 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403 More informationQuantity required : 2 |
