Vehicle Exploded View - APRILIA SHIVER 750 E3 ABS-NOABS 2014-2016 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

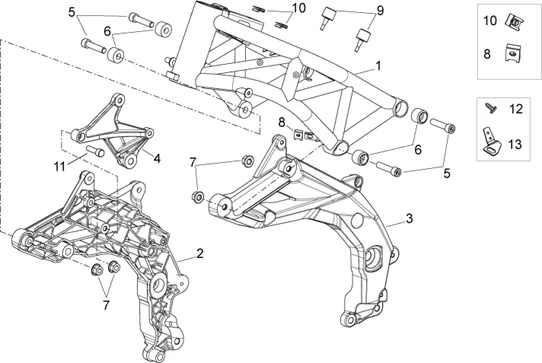

Chassis : 28.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/862/Shiver_750_E3_ABS-NOABS_2014-2016_(APAC_EMEA)_28.01.png)
1 |
89449300000XNI - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/2/img/39122.jpg)
2 |
RIGHT FLANK FRAME "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER 2010>2018, 750-900-1200 DORSODURO 2010>2018 NOIR -85153600XNB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/2/5/img/39125.jpg)
3 |
85153700XNB - FLANC G, NOIR More informationQuantity required : 1 |
||||||
|
4 |
851541 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/4/8/2/img/39482.jpg)
5 |
SCREW - FRONT FRAME FASTENING "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 750-900-1200 DORSODURO -852165 More informationQuantity required : 4 |
||||||
|
6 |
853037 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
8 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/9/img/71739.jpg)
9 |
AP8144030 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
11 |
AP8150195 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 2 |
||||||
|
13 |
856668 - PLAQUE More informationQuantity required : 1 |
