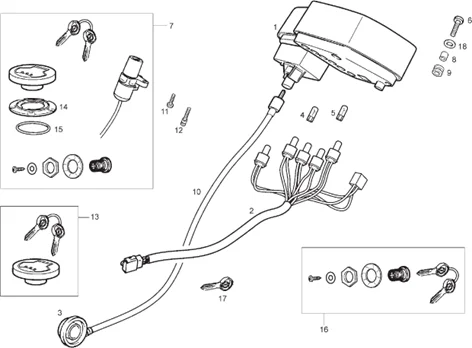

Vehicle Exploded View - DERBI SENDA R 125 Senda R 125 Baja 4T E3 2010 (EMEA)

	P2R reference	190459
	Maker reference	864811

864811 - TABLEAU DE BORD

	P2R reference	190460
	Maker reference	00H01641521

00H01641521 - TABLEAU DE BORD

	P2R reference	189955
	Maker reference	00H04321651

00H04321651 - INSTALLATION ÉLECTRIQUE

	P2R reference	189745
	Maker reference	00H01613051

00H01613051 - RENVOI DE ROUE

	P2R reference	64003
	Maker reference	00G01602581

00G01602581 - R-PORTE-LAMPES

	P2R reference	64002
	Maker reference	00G01601581

00G01601581 - R-PORTE-LAMPES

	P2R reference	63703
	Maker reference	000121520005

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000-

	P2R reference	189657
	Maker reference	00H05909251

00H05909251 - ENS.KIT SERRURES

	P2R reference	64572
	Maker reference	00H01600911

00H01600911 - ENTRETOISE

	P2R reference	63881
	Maker reference	00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021-

	P2R reference	189744
	Maker reference	00H01620021

00H01620021 - ENSEMB.CABLE-GAINE COMPTEUR

	P2R reference	71829
	Maker reference	AP8150169

AP8150169 - VIS

	P2R reference	65032
	Maker reference	00H06300791

00H06300791 - VIS

	P2R reference	142285
	Maker reference	00H00400131

00H00400131 - ENS.BOUCHON RESERV.ESSENCE V.B

	P2R reference	187793
	Maker reference	00H00400161

00H00400161 - FLASQUE

	P2R reference	187791
	Maker reference	00H00400151

00H00400151 - JOINT

	P2R reference	64277
	Maker reference	00H00600681

LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681

	P2R reference	63909
	Maker reference	00F01810411

00F01810411 - CLEF

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181
