Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Net 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

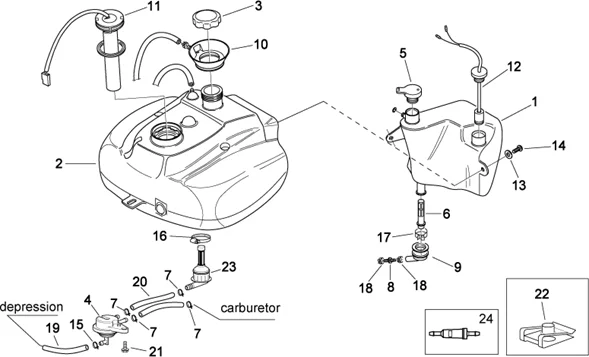

Chassis : 28.20 RESERVOIR HUILE ET CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/594/Scarabeo_50_2T_E2_Net_2010_28.20.PNG)
1 |
AP8268514 - SERBATOIO OLIO SENZA SFIATO More informationQuantity required : 1 |
||||||
|
2 |
AP8268594 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
3 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/8/4/img/40784.JPG)
4 |
860176 - ROBINET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
5 |
OIL TANK CAP "PIAGGIO GENUINE PART "APRILIA - COMMON FOR ALL 50CC SCOOTERS -AP8220421- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
6 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
7 |
AP8101595 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
8 |
2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944- More informationQuantity required : 2 |
||||||
|
9 |
AP8220503 - CAPUCHON RESERVOIR More informationQuantity required : 1 |
||||||
|
10 |
AP8220465 - CAOUTCHOUC COLLECTE ESSENCE; More informationQuantity required : 1 |
||||||
|
11 |
CM025716 - INDICATEUR NIVEAU CARBURANT More informationQuantity required : 1 |
||||||
|
12 |
AP8212481 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
13 |
AP8150013 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/7/img/71857.jpg)
14 |
AP8150298 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/8/img/71388.jpg)
15 |
AP8120179 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.JPG)
16 |
AP8101573 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
17 |
AP8101743 - COLLIER CLIC More informationQuantity required : 1 |
||||||
|
18 |
AP8102378 - COLLIER More informationQuantity required : 3 |
||||||
|
19 |
896570 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
20 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
21 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
22 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/6/img/71216.jpg)
23 |
FUEL TANK UNION "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJITO -AP8104071- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/7/6/img/67776.jpg)
24 |
FUEL FILTER "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO -624522- More informationQuantity required : 1 |
