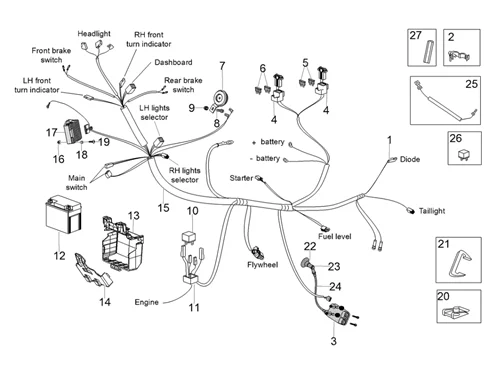

Vehicle Exploded View - APRILIA SCARABEO 2T 50 Carburatore E4 Classic 2018 (EMEA)

	P2R reference	56254
	Maker reference	AP8212382

DIODE "PIAGGIO GENUINE PART" 50 APRILIA 1998>2005, 650 PEGASO, 1000 CAPONORD, FUTURA -AP8212382-

	P2R reference	48900
	Maker reference	AP8134186

AP8134186 - GUIDE-CABLE;

	P2R reference
	Maker reference	CM287905

Dispositif du démarr. el

	P2R reference	72279
	Maker reference	AP8220342

AP8220342 - CAOUTCHOUC P-FUSIBLES

	P2R reference	66244
	Maker reference	290860

FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860

	P2R reference	66004
	Maker reference	252945

252945 - FUSIBLE 7,5A

	P2R reference	38283
	Maker reference	58238R

58238R - HORN 12 V-CC

	P2R reference	151683
	Maker reference	AP8152278

AP8152278 - VIS BRIDE M6X16

	P2R reference	71958
	Maker reference	AP8152299

AP8152299 - ECROU AUTOBLOQU.

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	72289
	Maker reference	AP8220546

AP8220546 - CAOUTCHOUC SUPPORT RELAIS

	P2R reference	65970
	Maker reference	234390

234390 - BATTERIE 12V/4 AH YUASA YB4L-B

	P2R reference	153423
	Maker reference	1L004079

1L004079 - BATTERIE PB4L-B AVEC ACID (12V 4AH)

	P2R reference	153424
	Maker reference	1L004080

1L004080 - BATTERIE PB4L-B DRY (12V 4AH)

	P2R reference	153425
	Maker reference	1L004081

1L004081 - BATTERIE PTX4L-BS (12V 3AH)

	P2R reference	60084
	Maker reference	AP8268471

AP8268471 - SCATOLA PORTABATTERIA NERO

	P2R reference	60083
	Maker reference	AP8268470

AP8268470 - COPERCHIO BATTERIA NERO

	P2R reference
	Maker reference	1D002533

Faisceau de câbles

	P2R reference	71963
	Maker reference	AP8152306

AP8152306 - ECROU AUTOBLOQU.

	P2R reference	67944
	Maker reference	641788

REGULATEUR DE TENSION ORIGINE PIAGGIO 50 TYPHOON, NRG 2018>, VESPA PRIMAVERA 4T 2013>, SPRINT 4T 2013>/GILERA 50 SMT, RCR 2018>/APRILIA 50 RS4 2018>, SX, RX 2018> -641788-

	P2R reference	71972
	Maker reference	AP8152338

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8152338-

	P2R reference	71174
	Maker reference	AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375

	P2R reference	46778
	Maker reference	AP8121309

AP8121309 - RESSORT CONNECTEURS;

	P2R reference	56885
	Maker reference	AP8220438

AP8220438 - CAOUTCHOUC;

	P2R reference	72186
	Maker reference	AP8212219

AP8212219 - PIPE BOUGIE BLINDEE

	P2R reference	57539
	Maker reference	AP8224688

AP8224688 - CAVO PIPETTA

	P2R reference	71635
	Maker reference	AP8127860

AP8127860 - PROLUNGA CABLAGGIO SONDA BENZ.

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	71779
	Maker reference	AP8144707

AP8144707 - GUARNIZIONE TELAIO
