Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

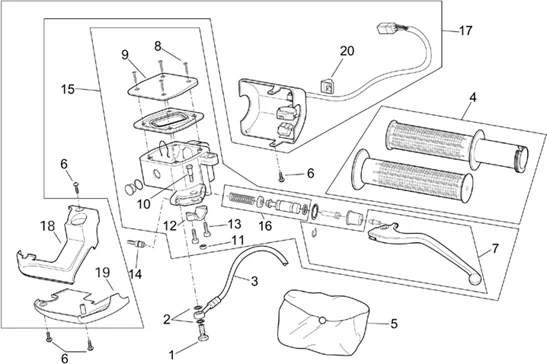

Chassis : 28.24 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.24.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
1 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
2 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
3 |
AP8133600 - TUBO FRENO POSTERIORE More informationQuantity required : 1 |
||||||
|
4 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
|
5 |
MAINTENANCE KIT- FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA125 SCARABEO -AP8113862- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
6 |
AP8152268 - VIS More informationQuantity required : 4 |
||||||
|
7 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
8 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
|
9 |
AP8113860 - COUVERCLE POMPE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
10 |
AP8125757 - VIS LEVIER More informationQuantity required : 1 |
||||||
|
11 |
AP8213298 - ECROU More informationQuantity required : 1 |
||||||
|
12 |
AP8113637 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
13 |
AP8213299 - VIS CALOTTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
14 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032 More informationQuantity required : 1 |
||||||
|
15 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" APRILIA125 SCARABEO -AP8133558- More informationQuantity required : 1 |
||||||
|
16 |
AP8113861 - PISTON CPL.; More informationQuantity required : 1 |
||||||
|
17 |
AP8127225 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
18 |
AP8124803 - COUV.DEV. FEUX SUP.G; More informationQuantity required : 1 |
||||||
|
19 |
AP8124804 - COUV.DEV. FEUX INF.G; More informationQuantity required : 1 |
||||||
|
20 |
AP8127180 - CAPUCHON POUSSOIR CLIGNOTANTS More informationQuantity required : 1 |
