Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

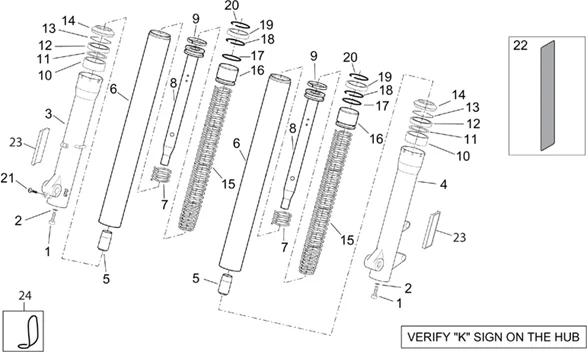

Chassis : 28.06 FOURCHE KAIFA TIGES,FOURREAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/613/Scarabeo_125_E2_Mot_Piaggio_2003_28.06.PNG)
1 |
AP8163285 - VITE More informationQuantity required : 2 |
||||||
|
2 |
Rondelle |
||||||
|
3 |
AP8163287 - FODERO DX More informationQuantity required : 1 |
||||||
|
4 |
AP8163288 - FODERO SX More informationQuantity required : 1 |
||||||
|
5 |
AP8163289 - TAMPONE DI FONDO More informationQuantity required : 2 |
||||||
|
6 |
AP8163290 - STELO More informationQuantity required : 2 |
||||||
|
7 |
AP8163291 - MOLLA More informationQuantity required : 2 |
||||||
|
8 |
AP8163292 - ASTA POMPANTE More informationQuantity required : 2 |
||||||
|
9 |
AP8163293 - ANELLO More informationQuantity required : 2 |
||||||
|
10 |
AP8163294 - BUSSOLA DI SCORRIMENTO More informationQuantity required : 2 |
||||||
|
11 |
AP8163295 - ROSETTA PARAOLIO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/3/img/72053.jpg)
12 |
OIL SEAL -AP8163296 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/4/img/72054.jpg)
13 |
AP8163297 - ANELLO DI FERMO More informationQuantity required : 2 |
||||||
|
14 |
AP8163298 - PARAPOLVERE More informationQuantity required : 2 |
||||||
|
15 |
AP8163299 - MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/6/img/72056.jpg)
16 |
AP8163300 - COLLARE MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/7/img/72057.jpg)
17 |
O'RING GASKET FOR FORK - KAIFA "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, LEONARDO, SPORT-CITY, SCARABEO, 50 RS, TUONO -AP8163301 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/8/img/72058.jpg)
18 |
AP8163302 - ANELLO SEEGER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/9/img/72059.jpg)
19 |
FORK TOP CAP "PIAGGIO GENUINE PART" COMMON TO ALL APRILIA MAXISCOOTERS -AP8163303 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/6/0/img/72060.jpg)
20 |
AP8163304 - ANELLO SEEGER More informationQuantity required : 2 |
||||||
|
21 |
AP8163305 - VITE More informationQuantity required : 1 |
||||||
|
22 |
AP8167127 - DECALCO PROTECT.; More informationQuantity required : 1 |
||||||
|
23 |
AP8224342 - CATADIOPTRE; More informationQuantity required : 2 |
||||||
|
24 |
AP8121856 - GUIDE-CABLE More informationQuantity required : 1 |
