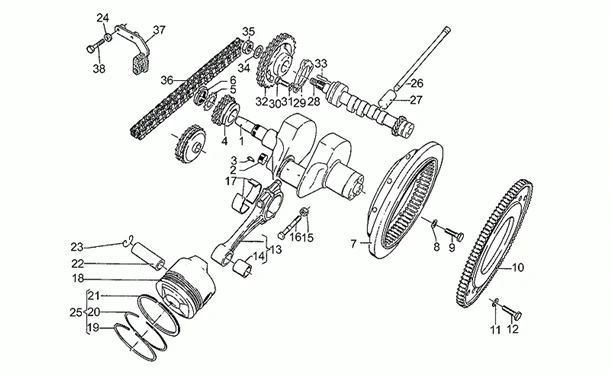

Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994

	P2R reference
	Maker reference	GU18064204

VILEBREQUIN

	P2R reference	129117
	Maker reference	GU12065400

GU12065400 - BOUCHON

	P2R reference	132376
	Maker reference	GU91702355

GU91702355 - CLAVETTE

	P2R reference	129194
	Maker reference	GU14072001

GU14072001 - PIGNON

	P2R reference	132701
	Maker reference	GU95028025

GU95028025 - RONDELLE DE SERETE

	P2R reference	132631
	Maker reference	GU93601026

RING NUT FOR TIMING GEAR "PIAGGIO GENUINE PART" MOTO-GUZZI COMMON TO 2 VALVES ENGINES -GU93601026-

	P2R reference
	Maker reference	GU14067050

Volant

	P2R reference	73448
	Maker reference	GU14615901

WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150-

	P2R reference	129315
	Maker reference	GU17067900

GU17067900 - COURONNE

	P2R reference	73448
	Maker reference	GU14615901

WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

	P2R reference	132894
	Maker reference	GU98054420

GU98054420 - VIS M8X20

	P2R reference	130529
	Maker reference	GU30061500

GU30061500 - BIELLE

	P2R reference	132272
	Maker reference	GU91112128

GU91112128 - BAGUE

	P2R reference	132553
	Maker reference	GU92731090

GU92731090 - ECROU AUTOBLOQU.

	P2R reference
	Maker reference	GU30062260

Vis

	P2R reference
	Maker reference	GU30062000

Demi-coussinet

	P2R reference	164518
	Maker reference	GU30062001

GU30062001 - DEMI-COUSSINET 0,254 MM

	P2R reference	130532
	Maker reference	GU30062002

GU30062002 - DEMI-COUSSINET 0,508 MM

	P2R reference	130533
	Maker reference	GU30062003

GU30062003 - DEMI-COUSSINET 0,762 MM

	P2R reference	129192
	Maker reference	GU14060760

GU14060760 - SEGMENT D'ETANCHEITE

	P2R reference	129413
	Maker reference	GU18060950

GU18060950 - SEGMENT D'ETANCHEITE

	P2R reference	129193
	Maker reference	GU14061060

GU14061060 - SEGMENT RACLEUR

	P2R reference
	Maker reference	GU28061260

AXE DE PISTON

	P2R reference	132149
	Maker reference	GU90351038

GU90351038 - BAGUE DE BUTEE

	P2R reference	131932
	Maker reference	GU61270300

GU61270300 - RONDELLE ELASTIQUE

	P2R reference
	Maker reference	GU18060601

Série segments

	P2R reference	131812
	Maker reference	GU37045006

GU37045006 - CULBUTEUR TIGE

	P2R reference	129312
	Maker reference	GU17045860

VALVE TAPPET "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, CALIFORNIA, GRISO, BREVA, 850 BREVA, NORGE, V10, V11, STRADA, LE-MANS, BELLAGIO -GU17045860

	P2R reference
	Maker reference	GU14053340

Arbre à cames

	P2R reference	128110
	Maker reference	GU010540016

GU010540016 - BRIDE

	P2R reference	132889
	Maker reference	GU98054320

GU98054320 - VIS M6X20

	P2R reference	132744
	Maker reference	GU95120065

GU95120065 - RONDELLE 6,5X11X2

	P2R reference
	Maker reference	GU13054502

Engrenage distribution

	P2R reference	129242
	Maker reference	GU14234600

GU14234600 - GOUPILLE

	P2R reference	129251
	Maker reference	GU14433400

GU14433400 - RONDELLE ELASTIQUE

	P2R reference	164726
	Maker reference	GU92602518

GU92602518 - ECROU M18X1,5

	P2R reference	128560
	Maker reference	GU05058030

TIMING CHAIN "PIAGGIO GENUINE PART" MOTO-GUZZI COMMON TO ALL 2 VALVES ENGINES -GU05058030

	P2R reference	130513
	Maker reference	GU30057810

GU30057810 - TENDEUR DE CHAINE

	P2R reference	132869
	Maker reference	GU98052435

GU98052435 - VIS M8X35
