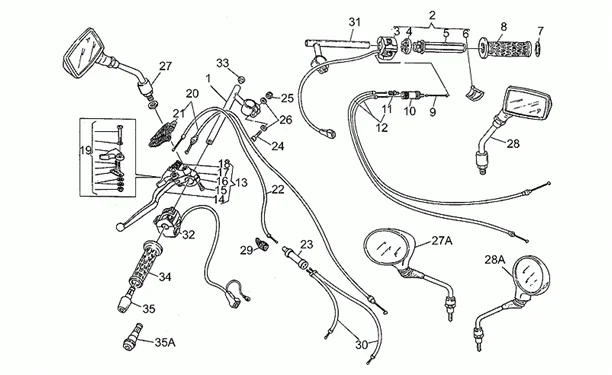

Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994

Chassis : 33.14 GUIDON - COMMANDES

Guidon - Commandes

Search

1

	P2R reference
	Maker reference	GU14600770

DEMI-GUIDON

2

	P2R reference	129663
	Maker reference	GU19603480

GU19603480 - COMANDO GAS

More information

Quantity required : 1

3

	P2R reference	129663
	Maker reference	GU19603480

GU19603480 - COMANDO GAS

More information

Quantity required : 1

4

	P2R reference	130037
	Maker reference	GU27604415

GU27604415 - BLOC

More information

Quantity required : 1

5

	P2R reference
	Maker reference	GU27603815

Corps mobile

6

	P2R reference	130038
	Maker reference	GU27604515

GU27604515 - BLOC

More information

Quantity required : 1

7

	P2R reference	130427
	Maker reference	GU29606970

GU29606970 - RONDELLE NYLON

More information

Quantity required : 1

8

	P2R reference	130236
	Maker reference	GU28603578

GU28603578 - POIGNEE

More information

Quantity required : 1

9

	P2R reference
	Maker reference	GU28117578

Câble gaz

10

	P2R reference
	Maker reference	GU28117478

Dedoublereur

11

	P2R reference	130239
	Maker reference	GU28607678

GU28607678 - VIS EMBRAYAGE

More information

Quantity required : 2

12

	P2R reference	130120
	Maker reference	GU28117778

GU28117778 - CABLE GAZ AVEC DEDOUBLEUR

More information

Quantity required : 2

13

	P2R reference
	Maker reference	GU30605530

Levier embrayage complet

14

	P2R reference
	Maker reference	GU30605530

Levier embrayage complet

15

	P2R reference	130030
	Maker reference	GU27601215

GU27601215 - VIS

More information

Quantity required : 2

16

	P2R reference	164652
	Maker reference	GU27601015

GU27601015 - DEMI-COLLIER

More information

Quantity required : 1

17

	P2R reference	164651
	Maker reference	GU27601815

GU27601815 - CAVALIER LEVIER EMBR

More information

Quantity required : 1

18

	P2R reference	46305
	Maker reference	GU30602500

AP8118348 - REGLAGE LEVIER EMBRAYAGE;

More information

Quantity required : 1

18

	P2R reference	46305
	Maker reference	AP8118348

AP8118348 - REGLAGE LEVIER EMBRAYAGE;

More information

Quantity required : 1

19

	P2R reference
	Maker reference	GU27659415

Levier

20

	P2R reference	130103
	Maker reference	GU28093078

GU28093078 - CABLE EMBRAYAGE

More information

Quantity required : 1

20

	P2R reference
	Maker reference	GU28093079

Câble embrayage

21

	P2R reference	130059
	Maker reference	GU27663815

GU27663815 - PROTECTION

More information

Quantity required : 1

22

	P2R reference
	Maker reference	GU281328785

23

	P2R reference	130865
	Maker reference	GU30607910

GU30607910 - DEDOUBLEREUR

More information

Quantity required : 2

24

	P2R reference	141235
	Maker reference	GU98620335

GU98620335 - VIS M6X35

More information

Quantity required : 4

25

	P2R reference	73546
	Maker reference	GU92630106

GU92630106 - ECROU M6X1

More information

Quantity required : 4

26

	P2R reference	132651
	Maker reference	GU95000206

GU95000206 - RONDELLE

More information

Quantity required : 8

27

	P2R reference
	Maker reference	GU14769470

Miroir rétroviseur gche

27

	P2R reference
	Maker reference	GU28999546

RETROVISEUR

28

	P2R reference
	Maker reference	GU14769870

Miroir rétroviseur dte

28

	P2R reference
	Maker reference	GU28999546

RETROVISEUR

29

	P2R reference	129147
	Maker reference	GU12717600

GU12717600 - CAPUCHON

More information

Quantity required : 1

30

	P2R reference	130126
	Maker reference	GU28133578

GU28133578 - CABLE DE STARTER

More information

Quantity required : 1

31

	P2R reference
	Maker reference	GU14600670

Demi-guid.dte

32

	P2R reference
	Maker reference	GU27738015

Déviateur feux gche

33

	P2R reference
	Maker reference	GU616052305

34

	P2R reference
	Maker reference	GU28603078

POIGNEE

35

	P2R reference
	Maker reference	GU28602779

PLOMB D EQUILIBRAGE

35

	P2R reference
	Maker reference	GU28602790

PLOMB D EQUILIBRAGE
