Vehicle Exploded View - MOTO-GUZZI S 1000 1989-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

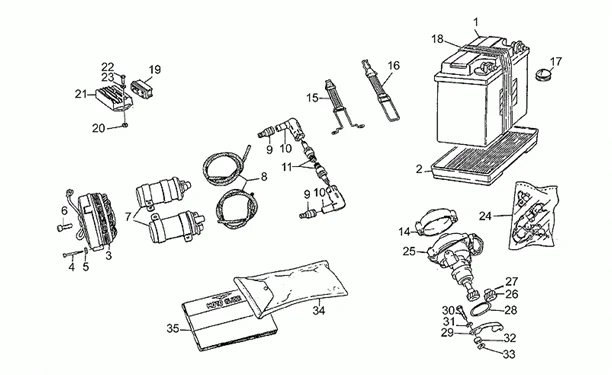

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/512/S_1000_1989-1994_33.01.PNG)
2 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
5 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
6 |
GU28712459 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/7/7/img/129377.jpg)
8 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL 2 VALVES MOTO-GUZZI -GU17718350- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
9 |
GU14717600 - CAPUCHON More informationQuantity required : 4 |
||||||
|
10 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
|
16 |
GU14705500 - ELASTIQUE DE FIXATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
17 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
|
19 |
GU28712500 - CONNECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
20 |
GU92630105 - ECROU More informationQuantity required : 2 |
||||||
|
23 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
24 |
MAINTENANCE KIT-CONTACT BREAKER+CONDENSER "PIAGGIO GENUINE PART" MOTO-GUZZI BEFORE 2000> -GU14719800- More informationQuantity required : 1 |
||||||
|
29 |
GU14715700 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
30 |
GU98052430 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
31 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
33 |
GU95004208 - RONDELLE More informationQuantity required : 1 |
