Vehicle Exploded View - APRILIA RX 125 E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

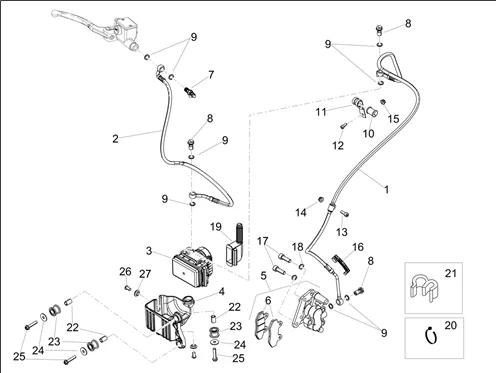

Châssis/coque : 06.15 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1019/RX_125_E5_2022_(EMEA)_06.15.png)
1 |
2B006160 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
2 |
2B004297 - TUBE POMPE More informationQuantity required : 1 |
||||||
|
3 |
2D000384 - CENTRALE ELECTRONIQUE More informationQuantity required : 1 |
||||||
|
4 |
2B004275 - BRIDE More informationQuantity required : 1 |
||||||
|
5 |
2R000489 - ETRIER DE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/2/8/img/154528.jpg)
6 |
2R000503 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
7 |
AP8133945 - KIT SPURGO ANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
8 |
1C002059R - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
AP8113004 - RONDELLE More informationQuantity required : 8 |
||||||
|
10 |
GU03658201 - BAGUE More informationQuantity required : 1 |
||||||
|
11 |
GU03658330 - COLLIER More informationQuantity required : 1 |
||||||
|
12 |
895709 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
13 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
14 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
15 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO/GUZZI -AP8150451 More informationQuantity required : 1 |
||||||
|
16 |
2B004522 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/0/1/7/img/174017.jpg)
17 |
271596 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 2 |
||||||
|
19 |
860746 - CAPUCHON ISOLANT More informationQuantity required : 1 |
||||||
|
20 |
RB000003 - HOSE CLAMP More informationQuantity required : 1 |
||||||
|
21 |
894704 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
22 |
AP8121718 - DOUILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/7/img/71757.jpg)
23 |
AP8144328 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/6/img/66296.jpg)
24 |
297029 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
25 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 3 |
||||||
|
26 |
AP8152186 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
27 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 1 |
