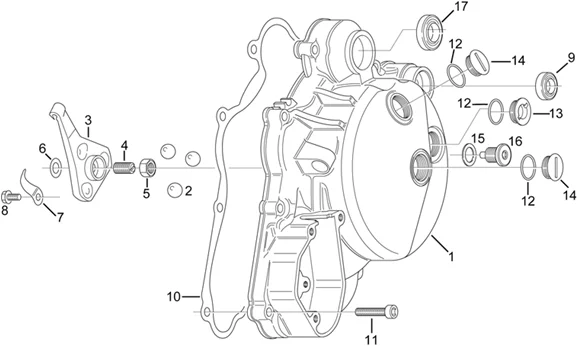

Vehicle Exploded View - APRILIA RS 125 1996-1998 (eng.122cc) APRILIA

Moteur : 29.20 COUVERCLE EMBRAYAGE
Couvercle embrayage
Search
AP0211403 - COUVERCLE EMBRAYAGE;

1
P2R reference P2R reference 43343
Maker reference Maker reference AP0211403

AP0211403 - COUVERCLE EMBRAYAGE;

More information

Quantity required : 1

CARTER EMBRAYAGE

1
P2R reference P2R reference
Maker reference Maker reference AP0211408

CARTER EMBRAYAGE

AP0232150 - BILLE

2
P2R reference P2R reference 43522
Maker reference Maker reference AP0232150

AP0232150 - BILLE

More information

Quantity required : 3

CLUTCH LEVER- "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, PEGASO, TUONO, CLASSIC -AP0259325-

3
P2R reference P2R reference 44007
Maker reference Maker reference AP0259325

CLUTCH LEVER- "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, PEGASO, TUONO, CLASSIC -AP0259325-

More information

Quantity required : 1

SCREW - M8X16 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO, MX -AP0241793-

4
P2R reference P2R reference 43739
Maker reference Maker reference AP0241793

SCREW - M8X16 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO, MX -AP0241793-

More information

Quantity required : 1

AP0942674 - ECROU

5
P2R reference P2R reference 44608
Maker reference Maker reference AP0942674

AP0942674 - ECROU

More information

Quantity required : 1

AP0227945 - RACLEUR

6
P2R reference P2R reference 43483
Maker reference Maker reference AP0227945

AP0227945 - RACLEUR

More information

Quantity required : 1

AP0239907 - RESSORT A LAMES

7
P2R reference P2R reference 43683
Maker reference Maker reference AP0239907

AP0239907 - RESSORT A LAMES

More information

Quantity required : 1

AP0841685 - VIS BRIDE

8
P2R reference P2R reference 44530
Maker reference Maker reference AP0841685

AP0841685 - VIS BRIDE

More information

Quantity required : 1

AP0250455 - JOINT SPI

9
P2R reference P2R reference 43834
Maker reference Maker reference AP0250455

AP0250455 - JOINT SPI

More information

Quantity required : 1

GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, TUONO, RX, SX -AP0250206-

10
P2R reference P2R reference 43822
Maker reference Maker reference AP0250206

GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, TUONO, RX, SX -AP0250206-

More information

Quantity required : 1

AP0840880 - VIS

11
P2R reference P2R reference 44524
Maker reference Maker reference AP0840880

AP0840880 - VIS

More information

Quantity required : 9

AP0250890 - JOINT TORIQUE

12
P2R reference P2R reference 43840
Maker reference Maker reference AP0250890

AP0250890 - JOINT TORIQUE

More information

Quantity required : 3

AP0240820 - VIS TCHC NIV.HUILE

13
P2R reference P2R reference 43710
Maker reference Maker reference AP0240820

AP0240820 - VIS TCHC NIV.HUILE

More information

Quantity required : 1

AP0241801 - BOUCHON PLASTIQUE

14
P2R reference P2R reference 43741
Maker reference Maker reference AP0241801

AP0241801 - BOUCHON PLASTIQUE

More information

Quantity required : 2

AP0250641 - BAGUE D'ETANCHEITE

15
P2R reference P2R reference 43839
Maker reference Maker reference AP0250641

AP0250641 - BAGUE D'ETANCHEITE

More information

Quantity required : 1

OIL DRAIN CAP MAGNETIC "PIAGGIO GENUINE PART" COMMON TO THE APRILIA RANGE -2R000498-

16
P2R reference P2R reference 151175
Maker reference Maker reference 2R000498

OIL DRAIN CAP MAGNETIC "PIAGGIO GENUINE PART" COMMON TO THE APRILIA RANGE -2R000498-

More information

Quantity required : 1

AP0930725 - JOINT SPI

17
P2R reference P2R reference 44576
Maker reference Maker reference AP0930725

AP0930725 - JOINT SPI

More information

Quantity required : 1
