Vehicle Exploded View - DERBI RAMBLA 250 Rambla 250 2ver E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

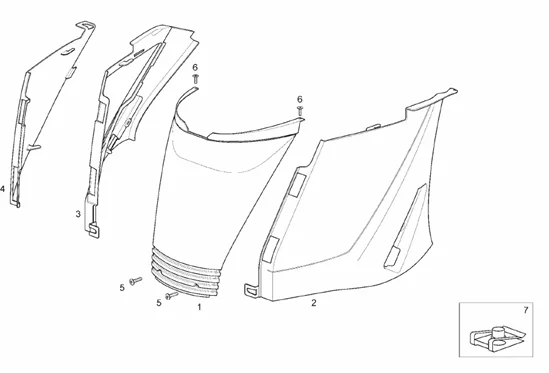

Vues éclatées : 15 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1108/Rambla_250_2ver_E3_2008_(EMEA)_15.png)
1 |
86074200XN6 - INFERIEUR SELLE More informationQuantity required : 1 |
||||||
|
2 |
LEFT UNDER SADDLE "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY -AP8184271- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/1/6/img/72116.jpg)
3 |
RIGHT UNDER SADDLE "PIAGGIO GENUINE PART" APRILIA 125-250 SPORT-CITY -AP8184270 More informationQuantity required : 1 |
||||||
|
4 |
AP8184272 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
5 |
AP8152269 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
