Vehicle Exploded View - APRILIA QUASAR 50 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

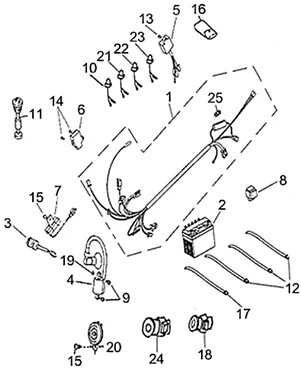

Chassis : 28.30 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/307/Quasar_50_2003_28.30.PNG)
Search
1 |
AP8910186 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
7 |
AP8910197 - RESISTENZA More informationQuantity required : 1 |
||||||
|
8 |
AP8910196 - RELE' More informationQuantity required : 1 |
||||||
|
12 |
AP8910324 - FASCETTA ALT-200M-B More informationQuantity required : 3 |
||||||
|
17 |
AP8910328 - FASCETTA LR-220AH More informationQuantity required : 1 |
