Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

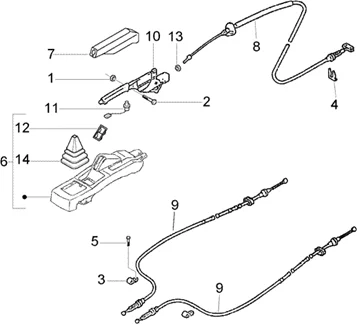

Transmisisons : T22 FREIN À MAIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T22.PNG)
1 |
261322 - ECROU More informationQuantity required : 1 |
||||||
|
2 |
9161160612000 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/4/1/img/110441.jpg)
4 |
MOUNTING CLIP FOR HANDBRAKE CABLE "PIAGGIO GENUINE PART" PORTER -9004465038000- More informationQuantity required : 4 |
||||||
|
6 |
615093 - BOITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/1/img/114681.JPG)
7 |
615091 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/9/7/img/118797.jpg)
8 |
TRANSMISSION CABLE FOR HANDBRAKE (FROM LEVER TO SPLITTER) "PIAGGIO GENUINE PART" PORTER -645264- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/0/3/8/img/119038.jpg)
9 |
TRANSMISSION CABLE FOR HANDBRAKE "PIAGGIO GENUINE PART" CARGO -613666- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/7/0/1/7/img/147017.jpg)
10 |
PARKING BRAKE LEVER "PIAGGIO GENUINE PART" PORTER -1E002476- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/2/1/4/img/118214.jpg)
11 |
PARKING BRAKE SWITCH "PIAGGIO GENUINE PART" PORTER, CARGO -8438087206000- More informationQuantity required : 1 |
||||||
|
12 |
5882587Z01030 - SAC More informationQuantity required : 1 |
||||||
|
14 |
615430 - PARE-POUSSIER More informationQuantity required : 1 |
