Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

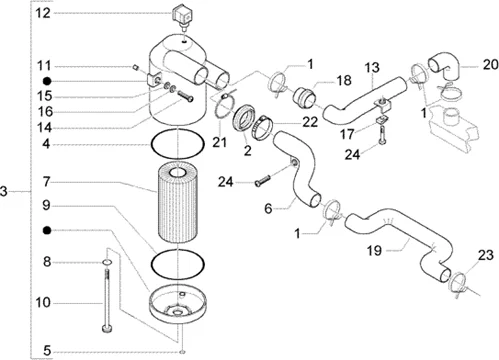

Moteur : T17 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T17.PNG)
1 |
D9004460123 - COLLIER More informationQuantity required : 4 |
||||||
|
2 |
613161 - RACCORD More informationQuantity required : 1 |
||||||
|
3 |
615076 - FILTRE More informationQuantity required : 1 |
||||||
|
4 |
615076 - FILTRE More informationQuantity required : 1 |
||||||
|
5 |
632426 - SOUPAPE More informationQuantity required : 1 |
||||||
|
6 |
615650 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/0/8/img/115808.jpg)
7 |
AIR FILTER "PIAGGIO GENUINE PART" 50-220 APE -614945- More informationQuantity required : 1 |
||||||
|
8 |
568997 - JOINT More informationQuantity required : 1 |
||||||
|
9 |
569696 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
569041 - POMELLO More informationQuantity required : 1 |
||||||
|
11 |
230560 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
583956 - CAPTEUR THERMO More informationQuantity required : 1 |
||||||
|
13 |
613715 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
14 |
031092 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
15 |
013092 - RONDELLE S01309200 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
16 |
016406 - RONDELLE S01640600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
18 |
614125 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/5/8/4/img/119584.jpg)
19 |
263915 - TUBE More informationQuantity required : 1 |
||||||
|
20 |
263969 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/7/1/img/112271.jpg)
21 |
615406 - COLLIER More informationQuantity required : 1 |
||||||
|
22 |
293404 - COLLIER More informationQuantity required : 1 |
