Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (TW 3250)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

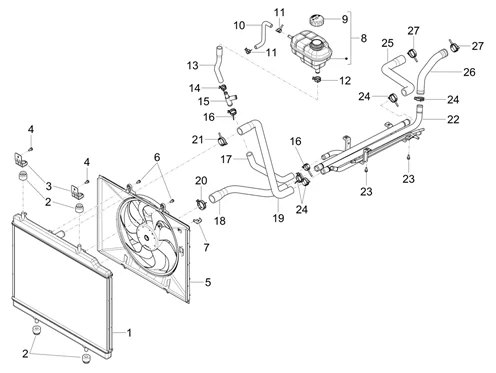

Châssis - circuits : 06.02 INSTALLATION DE REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/999/Porter_NP6_(TW_3250)_06.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/3/1/img/173531.jpg)
1 |
WL0130030105A0 - RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/3/2/img/173532.jpg)
2 |
WC3130150001A0 - RADIATOR BUSHING More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/3/3/img/173533.jpg)
3 |
WL0130060029A0 - UPPER BRACKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/9/9/img/173199.jpg)
4 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 2 |
||||||
5 |
WL0130310100A0 - ELECTRONIC FAN ASSEMBLY More informationQuantity required : 1 |
||||||
|
6 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
WL0130060320A0 - INSERT BOX CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/3/6/img/173536.jpg)
8 |
WET130410100A0 - EXPANSION TANK ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/3/7/img/173537.jpg)
9 |
WET130410900A0 - LIQUID COOLANT TANK CAP More informationQuantity required : 1 |
||||||
|
10 |
WL0130430022A0 - HOSE, DEGASSING More informationQuantity required : 1 |
||||||
|
11 |
WQ673C16 - CLAMP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/4/0/img/173540.jpg)
12 |
WQ673C25 - CLAMP More informationQuantity required : 1 |
||||||
|
13 |
WET130440100A0 - HOSE OUTLET COOLING TANK More informationQuantity required : 1 |
||||||
|
14 |
WQ673C21 - CLAMP More informationQuantity required : 1 |
||||||
|
15 |
WET130250100A0 - CONNECTOR 3 WAY More informationQuantity required : 1 |
||||||
|
16 |
WQ673C27 - HOSE CLAMP More informationQuantity required : 2 |
||||||
|
17 |
WET130440200A0 - HOSE HEATER OUTLET More informationQuantity required : 1 |
||||||
|
18 |
WL0130210199A0 - HOSE COOLING BACKFLOW N1 More informationQuantity required : 1 |
||||||
|
19 |
WL0130220093A0 - HOSE RADIATOR INLET N3 More informationQuantity required : 1 |
||||||
|
20 |
WQ673C40 - STEEL STRIP TYPE ELASTIC HOSE HOOP More informationQuantity required : 1 |
||||||
|
21 |
WQ673C36 - STEEL STRIP TYPE ELASTIC HOSE HOOP More informationQuantity required : 1 |
||||||
|
22 |
WET130270101A0 - ENGINE WATER INLET OUTLET PIPE ASSEMBLY More informationQuantity required : 1 |
||||||
|
23 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 4 |
||||||
|
24 |
WQ673C32 - CLAMP More informationQuantity required : 4 |
||||||
|
25 |
WET130210700A0 - HOSE COOLING BACKFLOW N 3 More informationQuantity required : 1 |
||||||
|
26 |
WET130220500A0 - ENGINE WATER OUTLET HOSE More informationQuantity required : 1 |
||||||
|
27 |
WQ673C35 - STEEL STRIP TYPE ELASTIC HOSE HOOP More informationQuantity required : 2 |
