Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada S Anniversario 750 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

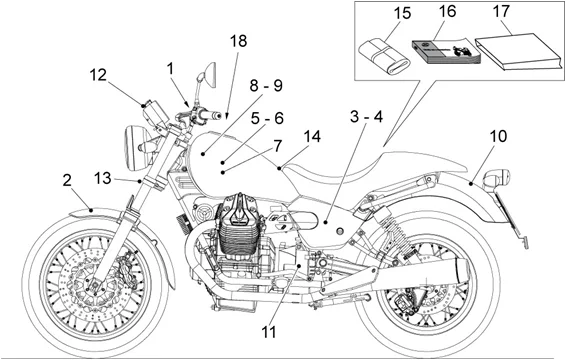

Chassis : 33.33 DÉCALCO ET PLAQUETTES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/505/Nevada_S_Anniversario_750_2012_33.33.PNG)
1 |
883598 - TARGHETTA OVALE MOTOGUZZI More informationQuantity required : 1 |
||||||
|
2 |
886141 - DECALCO OVALE MOTO GUZZI AQUILA NERA More informationQuantity required : 1 |
||||||
|
3 |
886139 - DECALCO "NEVADA" CROMATA DX FIANCHETTO More informationQuantity required : 1 |
||||||
|
4 |
886140 - DECALCO "NEVADA" CROMATA SX FIANCHETTO More informationQuantity required : 1 |
||||||
|
5 |
886136 - DECALCO AQUILA NERA DX SERBATOIO More informationQuantity required : 1 |
||||||
|
6 |
886137 - DECALCO AQUILA NERA SX SERBATOIO More informationQuantity required : 1 |
||||||
|
7 |
886138 - DECALCO "MOTO GUZZI" SERBATOIO More informationQuantity required : 2 |
||||||
|
8 |
886346 - DECALCO FILETTO DX SERBATOIO BENZ. More informationQuantity required : 1 |
||||||
|
9 |
886347 - DECALCO FILETTO SX SERBATOIO BENZ. More informationQuantity required : 1 |
||||||
|
10 |
886348 - DECALCO FASCIONE PARAFANGO POSTERIORE More informationQuantity required : 1 |
||||||
|
11 |
895839 - DECALCO More informationQuantity required : 1 |
||||||
|
12 |
978551 - STEMMA AQUILA CRUSCOTTO More informationQuantity required : 1 |
||||||
|
13 |
GU01517700 - "DECALCO ""AQUILIA""" More informationQuantity required : 1 |
||||||
|
14 |
GU30944300 - "DECALCO ""ATTENTION""" More informationQuantity required : 1 |
||||||
|
15 |
887443 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
17 |
GU05900130 - SACHET POUR DOCUMENTS More informationQuantity required : 1 |
||||||
|
18 |
GU03995730 - "DECALCO ""UNLEADED FUELONLY""" More informationQuantity required : 1 |
